Spicer SPL70-4X U-Joint Kit - SPL70WJ Series (ISR)
Spicer SPL70-4X U-Joint Kit - SPL70WJ Series (ISR)
Regular price
$123.66 USD
Regular price
Sale price
$123.66 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Free shipping in the continental USA. Ships same day via UPS if ordered by 12pm M/F. 30-day returns on unused items in original packaging (sale items excluded). Questions: sales@platinumperformanceparts.com

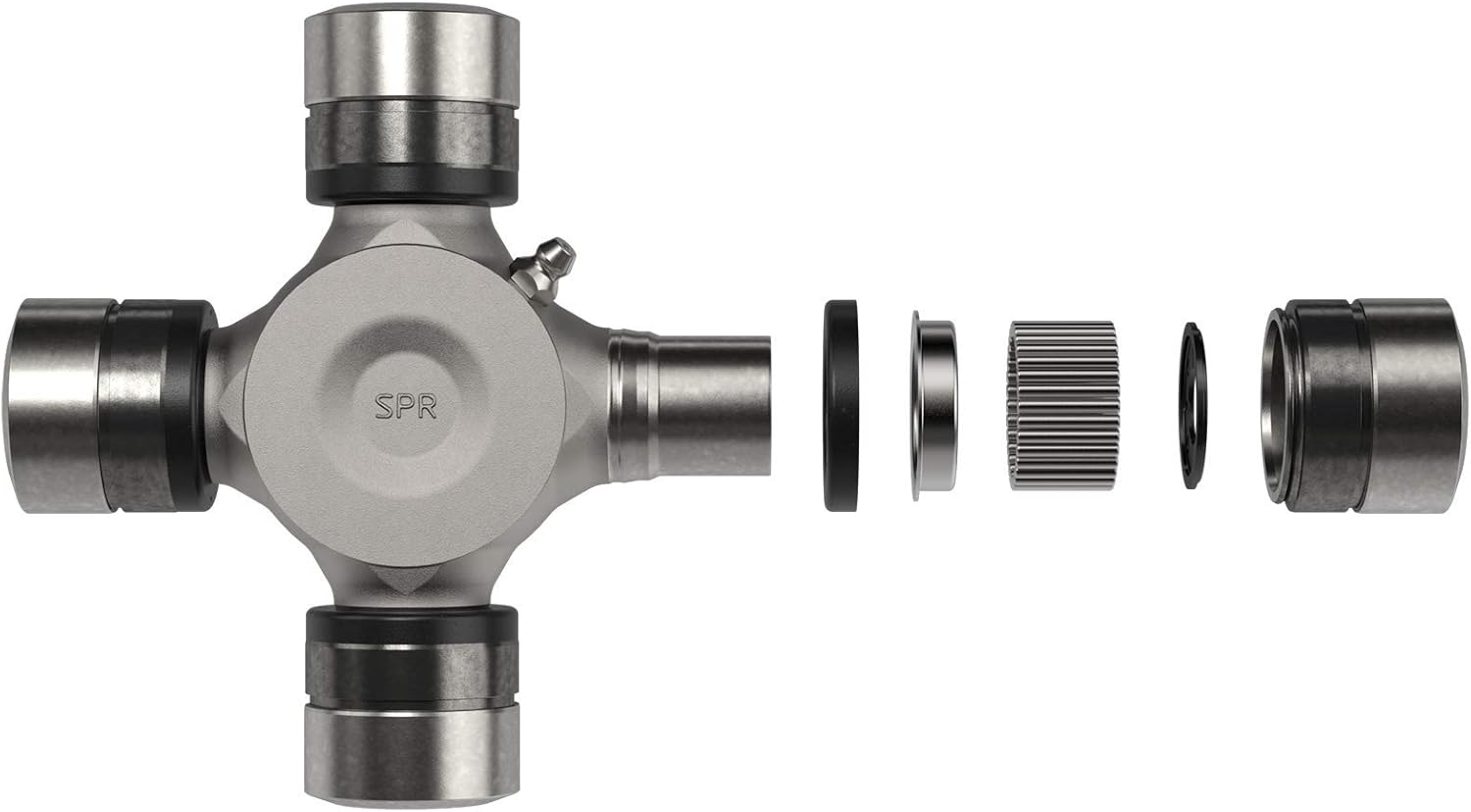

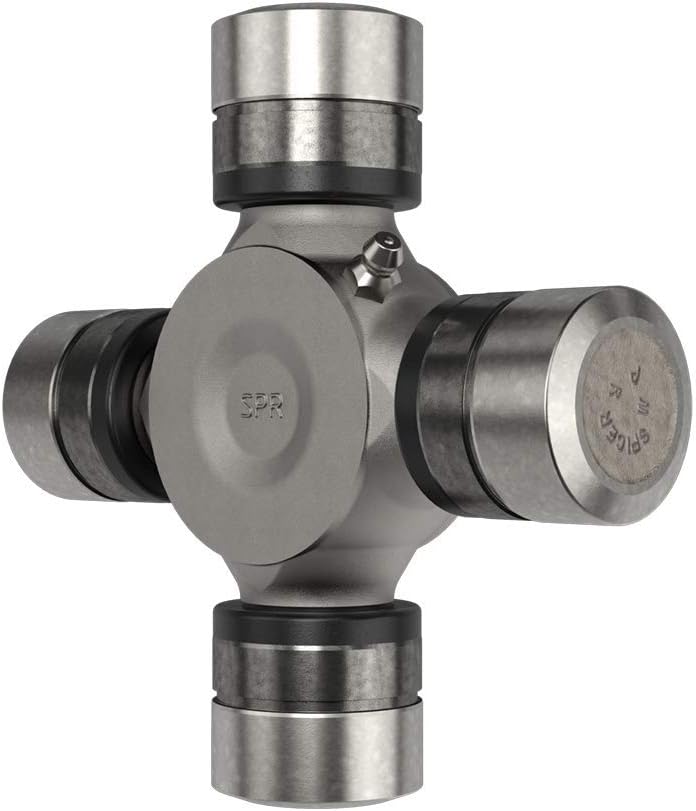

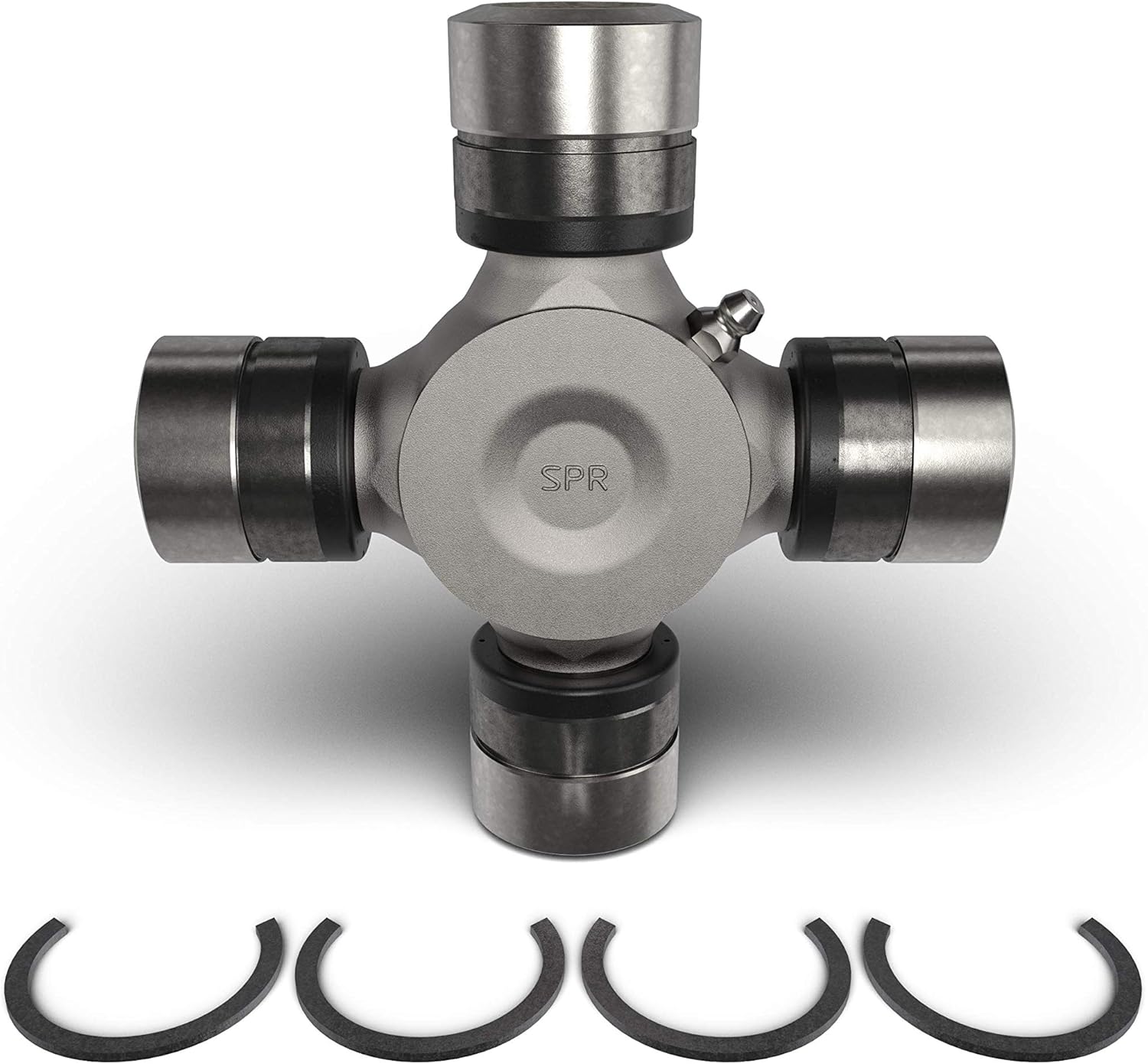

Genuine OEM Dana Spicer SPL70-4X greasable U-joint kit, SPL70WJ Series, ISR configuration.
- Genuine OEM Dana Spicer
- In stock, ships fast
Quick facts
Who it's for: Anyone replacing Spicer part SPL70-4X. Match this part number to the one on your old part or your parts catalog.
Fits
| Years | Make | Model | Axle / position |
|---|---|---|---|
| 2005–2009 | Chevrolet | C4500 Kodiak | Front Axle at Wheels |
| 2005–2009 | Chevrolet | C5500 Kodiak | Front Axle at Wheels |
| 2011–2022 | Ford | F-250 Super Duty | Front Axle at Wheels |
| 2011–2022 | Ford | F-350 Super Duty | Front Axle at Wheels |
| 2005–2022 | Ford | F-450 Super Duty | Front Axle at Wheels |
| 2005–2022 | Ford | F-550 Super Duty | Front Axle at Wheels |
| 2005–2009 | GMC | C4500 Topkick | Front Axle at Wheels |
| 2005–2009 | GMC | C5500 Topkick | Front Axle at Wheels |
What's included
- (1) Spicer SPL70-4X — Axle Shaft Universal Joint; Greaseable; SPL70WJ Series
Specs
- Bearing Cap Diameter (1): 1.375 in
- Bearing Cap Diameter (2): 1.375 in
- Bearing Cap Type A: ISR
- Bearing Cap Type B: ISR
- Bearing Cap Type: Round with ISR Groove
- Distance Btw Snap Ring Grooves (ISR) (2): 3.780
- Distance Btw Snap Ring Grooves: 3.780
- Grease Fitting Location: Side of Cross
- Grease Zerk Included: Yes
- Greaseable: Yes
- Hardware Included: No
- Length A (In): 3.780
- Length B (In): 3.780
- Material: Steel
Cross-reference
- Spicer part number: SPL70-4X
