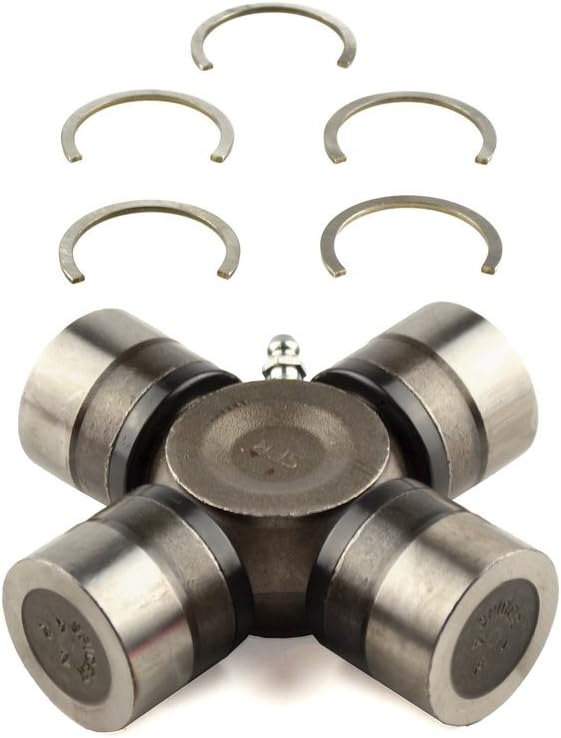

Spicer SPL55-4X U-Joint Kit - SPL55/1480WJ Series (ISR)
Spicer SPL55-4X U-Joint Kit - SPL55/1480WJ Series (ISR)
Regular price
$73.35 USD
Regular price
Sale price
$73.35 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Free shipping in the continental USA. Ships same day via UPS if ordered by 12pm M/F. 30-day returns on unused items in original packaging (sale items excluded). Questions: sales@platinumperformanceparts.com

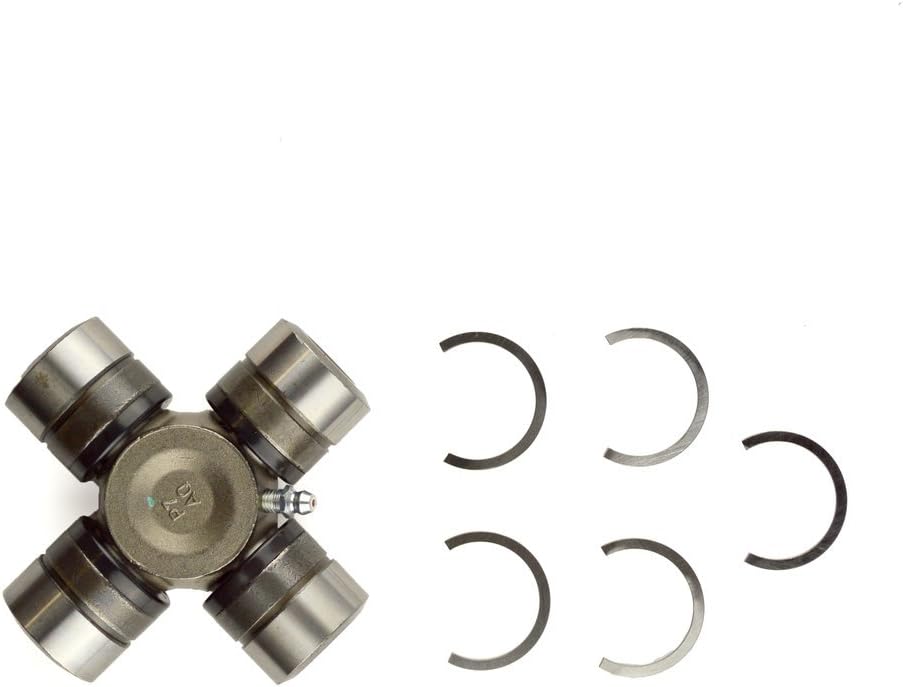

Genuine OEM Dana Spicer SPL55-4X greasable U-joint kit, SPL55/1480WJ Series, ISR configuration.
- Genuine OEM Dana Spicer
- In stock, ships fast
Quick facts
Who it's for: Anyone replacing Spicer part SPL55-4X. Match this part number to the one on your old part or your parts catalog.
Fits
| Years | Make | Model | Axle / position |
|---|---|---|---|
| 1977–1986 | Chevrolet | K30 | Front Axle at Wheels |
| 1987–1988 | Chevrolet | V30 | Front Axle at Wheels |
| 1989–1991 | Chevrolet | V3500 | Front Axle at Wheels |
| 1994–2002 | Dodge | Ram 2500 | Dana 60 axle, Front Axle at Wheels |
| 1994–2002 | Dodge | Ram 3500 | Front Axle at Wheels |
| 1975–1980 | Dodge | W200 | Front Axle at Wheels |
| 1981, 1986–1993 | Dodge | W250 | Dana 60 axle, Front Axle at Wheels |
| 1975–1980 | Dodge | W300 | Dana 60 axle, Front Axle at Wheels |
| 1973–1974 | Dodge | W300 Pickup | Dana 60 axle, Front Axle at Wheels |
| 1981–1993 | Dodge | W350 | Dana 60 axle, Front Axle at Wheels |
| 2000–2005 | Ford | Excursion | Front Axle at Wheels |
| 1978–1979 | Ford | F-250 | Front Axle at Wheels |
| 1999–2022 | Ford | F-250 Super Duty | Front Axle at Wheels |
| 1979, 1985–1997 | Ford | F-350 | Front Axle at Wheels |
| 1999–2019 | Ford | F-350 Super Duty | Front Axle at Wheels |
| 1999–2004 | Ford | F-450 Super Duty | Front Axle at Wheels |
| 1999–2004 | Ford | F-550 Super Duty | Front Axle at Wheels |
| 1977–1978 | GMC | K35 | Front Axle at Wheels |
| 1979–1986, 1988–1989 | GMC | K3500 | Front Axle at Wheels |
| 1987–1991 | GMC | V3500 | Front Axle at Wheels |
| 1966 | International | 1300A | Front Axle at Wheels |
| 1967 | International | 1300B | Front Axle at Wheels |
| 1968 | International | 1300C | Front Axle at Wheels |
| 1969–1970 | International | 1300D | Front Axle at Wheels |
What's included
- (1) Spicer SPL55-4X — Axle Shaft Universal Joint; Greaseable
Specs
- Bearing Cap Diameter (1): 1.375 in
- Bearing Cap Diameter (2): 1.375 in
- Bearing Cap Finish: Ground
- Bearing Cap Type A: ISR
- Bearing Cap Type B: ISR
- Bearing Cap Type: Round with ISR Groove
- Distance Btw Snap Ring Grooves (ISR) (2): 3.000
- Distance Btw Snap Ring Grooves: 3.000
- Grease Fitting Location: Side of Cross
- Grease Type: N.L.G.I. Grade 2
- Grease Zerk Included: Yes
- Greaseable: Yes
- Hardware Included: No
- Length A (In): 3.000
Cross-reference
- Spicer part number: SPL55-4X
