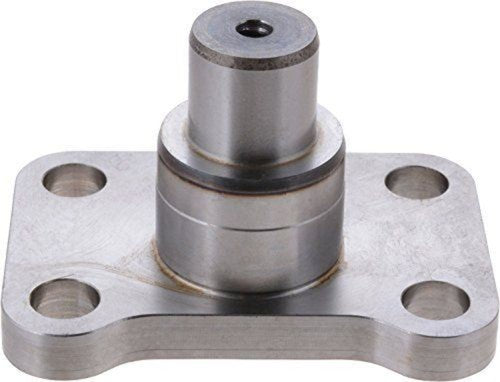

Spicer Front Axle Lower King Pin for 1975-1993 Dodge W250, W350, Chevy & Ford (Kingpin Dana 60, Single Component)

Eliminate harsh front-end play, stabilize steering tracking, and restore uncompromised structural integrity to your classic heavy-duty truck with this genuine Spicer Front Axle Lower King Pin. Specifically engineered as a high-durability original equipment replacement for 1975–1993 Dodge W250 and W350 4x4 trucks, as well as vintage 1-ton Chevy/GMC and Ford kingpin platforms, this single tapered spindle pin provides the essential structural pivot point required to rebuild a loose, pitted, or neglected steering knuckle assembly.

On classic mono-beam Dana 60 solid front axles, the steering knuckles do not use modern ball joints. Instead, they rely on an ultra-rugged, industrial-grade kingpin configuration. The lower section of this system utilizes a precision-machined, hardened steel kingpin that mounts tightly onto the knuckle shell and seats down into a heavy-duty tapered roller bearing within the inner C-axle ear. Over decades of heavy commercial hauling, snowplowing, or trail riding with massive off-road tires, this lower pin can develop deep pitting, rust scars, or flat spots due to moisture intrusion or lack of grease. A worn lower kingpin introduces structural slack into the steering knuckle pivot axis, leading to severe tire cupping, unsafe steering wheel shimmy, low-speed clunking, and a total loss of front-end alignment stability.

This original equipment manufacturer (OEM) replacement component is forged by the industry’s benchmark drivetrain supplier from premium-grade carbon-alloy steel, induction-hardened to exact case depths, and ground to microscopic factory tolerances. Choosing a genuine Spicer kingpin guarantees uncompromised metallurgical density and a flawless fit into your factory steering knuckle, avoiding the rapid wear or loose housing tolerances common with cheap aftermarket alternatives.

Component Features:

• Industrial Forged Strength: Precision-manufactured from high-tensile alloy steel to support the immense front-end weight of heavy iron-block Cummins Turbo Diesel or big-block gas engines and commercial utility attachments.

• Micro-Ground Seating Surface: Features a mirrored, ultra-smooth outer taper to ensure uniform load distribution across your lower kingpin tapered roller bearings.

• Restores Alignment Accuracy: Re-establishes a rock-solid lower pivot axis to instantly clear up lane drift and stabilize steering knuckle geometry under extreme load.

• Genuine Spicer OEM Quality: Engineered directly from original blueprint dimensions to guarantee hassle-free installation and strict compliance with factory strength parameters.

Vehicle & Axle Fitment:

• Axle Profile: Solid Mono-Beam Low-Pinion or High-Pinion Dana 60 Front Axles with Kingpin Suspensions. Does not fit later ball-joint style Dana 60 or Dana Super 60 configurations.

• Dodge W250 / W350 Pickups: 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, and 1993 heavy-duty 4x4 trucks (including all 5.9L Cummins Diesel and V8 configurations).

• Chevrolet & GMC K30 / K3500 Pickup & V3500: 1977–1991 1-ton 4x4 trucks equipped with kingpin Dana 60 front axles.

• Ford F-350: 1978–1979 and 1985–1991 1-ton 4x4 trucks running open-knuckle kingpin Dana 60 housings.

• Position: Front Outer Axle Steering Knuckle — Lower Position, Left (Driver) or Right (Passenger) Side. (Note: Sold individually; two pins required if overhauling both sides of the front axle).
