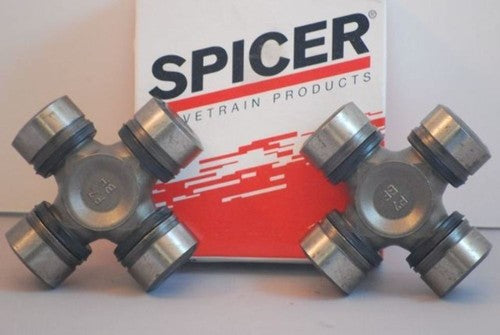

Spicer 5-760X Front Axle Shaft U-Joint Combo Kit for Jeep & Truck Dana 30 / 44 (Pair, Both Sides)

Eliminate harsh front-axle binding, stop severe steering wheel feedback, and upgrade your front drivetrain's load capacity with this genuine Spicer 5-760X Heavy Duty Front Axle U-Joint Combo Kit. Specially packaged as a complete dual-side solution for vehicles running Dana 30 and Dana 44 open-knuckle front axles, this matched pair replaces the weaker, factory-installed 5-297X series joints with premium, triple-sealed solid crosses.

On solid-axle 4x4 rigs, the front outer axle shaft universal joints are subjected to extreme multi-axis stress. They must continuously channel engine torque straight to the wheel hubs while pivoting up to 45 degrees during tight steering maneuvers on the trail or highway. Over time, or from running larger oversized off-road tires, factory universal joints wear down as internal grease paths dry up. A failing front axle U-joint will present itself through a loud metallic clicking or popping noise during tight turns, severe steering wheel binding when the 4WD system is engaged, or visible rust weeping past the bearing cap seals.

This original equipment manufacturer (OEM) Spicer Life Series (SPL) upgrade is engineered with a rugged, cold-formed solid-steel body to deliver maximum structural cross-sectional density and strength. It features an Inside Snap Ring (ISR) retaining design and specialized thrust washers within the bearing caps to eliminate friction, lower operating temperatures, and prevent costly axle shaft yoke ear galling.

Kit Contents (Services Both Driver & Passenger Front Axles):

• (2) Premium 5-760X Solid-Body U-Joint Cross Assemblies (Non-Greasable for Maximum Torque Strength)

• (8) Precision-Ground Journal Tapered Needle Bearing Caps

• (8) High-Strength Inside Snap Rings (ISR)

• (8) Advanced Multi-Lip Synthetic Rubber Seals

Kit Highlights:

• Complete Axle Set: Includes two premium 5-760X universal joints to fully overhaul both the driver and passenger side front outer steering axle shafts simultaneously.

• Genuine Spicer Life Series (SPL) Quality: Engineered by the original equipment supplier to provide up to 10 times the service life of traditional greaseable aftermarket joints.

• Solid-Body Design: Forged without internal grease channels to optimize structural cross-sectional density, making it virtually impervious to high-torque shearing forces.

• Triple-Lip Seal Protection: Advanced synthetic multi-lip seals form an airtight environmental barrier, permanently locking premium synthetic lubricant in while keeping trail water, road salt, and abrasive mud out.

Vehicle & Axle Fitment:

• Axle Profiles: Open-Knuckle Solid/Monobeam Front Axles: Dana 30 and Dana 44 layouts using inside snap ring universal joints.

• Jeep Wrangler: 1997–2006 Wrangler TJ / LJ (Front Axle Shafts) and 2007–2018 Wrangler JK / JKU (Fits Dana 30 Non-Rubicon Front Axles; Note: Rubicon Dana 44 front axle shafts require the larger SPL55-3X series).

• Jeep Cherokee: 1995–2001 Cherokee XJ models equipped with the larger 297/760 series factory axle shafts.

• Truck Models: Fits select classic Ford F-150/Bronco and Chevy/GMC K10/K20 trucks running open-knuckle Dana 44 front axle configurations.

• Position: Front Outer Axle Shaft — Steering Knuckle Location (Fits Left and Right Sides)
