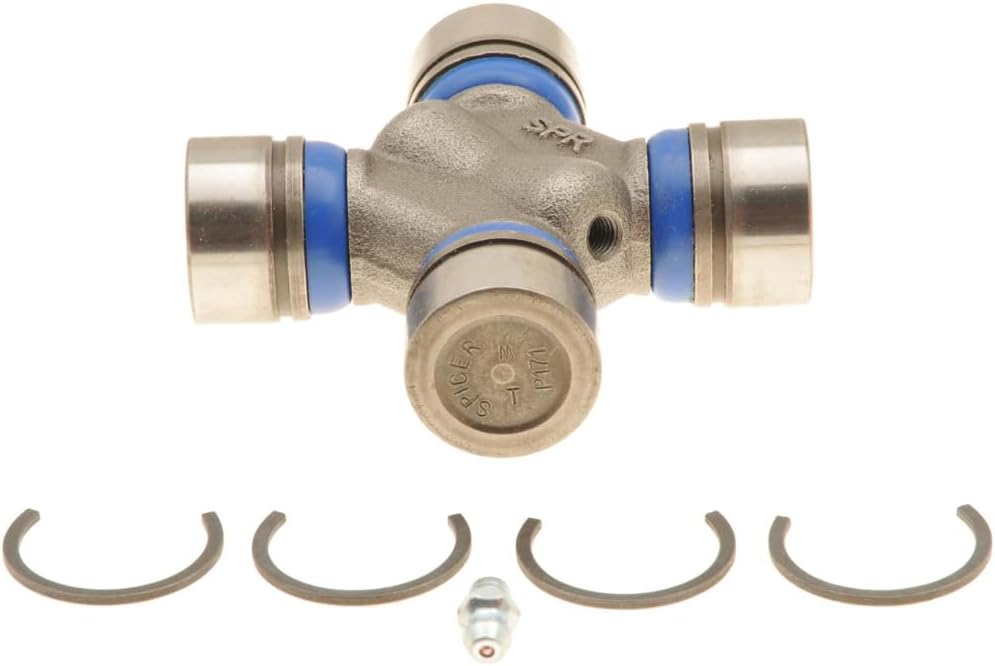

Spicer 5-3147X U-Joint S44 Series ISR
Spicer 5-3147X U-Joint S44 Series ISR
Regular price
$34.97 USD
Regular price
Sale price
$34.97 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Free shipping in the continental USA. Ships same day via UPS if ordered by 12pm M/F. 30-day returns on unused items in original packaging (sale items excluded). Questions: sales@platinumperformanceparts.com
Genuine OEM Dana Spicer S44 Series U-joint, ISR snap ring.
- Genuine OEM Dana Spicer
- In stock, ships fast
Quick facts
Who it's for: Anyone replacing Spicer part 5-3147X. Match this part number to the one on your old part or your parts catalog.
Fits
| Years | Make | Model | Axle / position |
|---|---|---|---|
| 1971–1973 | Buick | Centurion | Rear Driveshaft - CV at Rear Axle |
| 1971–1973 | Buick | Centurion | Rear Driveshaft at Rear Axle |
| 1971–1973 | Buick | Centurion | Rear Driveshaft at Transmission |
| 1973–1981 | Buick | Century | Rear Driveshaft at Rear Axle |
| 1973–1981 | Buick | Century | Rear Driveshaft at Transmission |
| 1995–1996 | Buick | Commercial Chassis | Rear Driveshaft at Rear Axle |
| 1995–1996 | Buick | Commercial Chassis | Rear Driveshaft at Transmission |
| 1961–1963, 1968 | Buick | Electra | Rear Driveshaft - CV at Support Bearing |
| 1961–1989 | Buick | Electra | Rear Driveshaft at Rear Axle |
| 1961–1989 | Buick | Electra | Rear Driveshaft at Transmission |
| 1969–1981 | Buick | Electra | Rear Driveshaft - CV at Rear Axle |
| 1970–1983 | Buick | Estate Wagon | Rear Driveshaft at Rear Axle |
| 1970–1983 | Buick | Estate Wagon | Rear Driveshaft at Transmission |
| 1965–1967 | Buick | Gran Sport | Rear Driveshaft at Rear Axle |
| 1965–1967 | Buick | Gran Sport | Rear Driveshaft at Transmission |
| 1959–1963 | Buick | Invicta | Rear Driveshaft at Rear Axle |
| 1959–1963 | Buick | Invicta | Rear Driveshaft at Transmission |
| 1961–1963 | Buick | LeSabre | Rear Driveshaft - CV at Support Bearing |
| 1961–1990 | Buick | LeSabre | Rear Driveshaft at Rear Axle |
| 1961–1990 | Buick | LeSabre | Rear Driveshaft at Transmission |
| 1969–1981 | Buick | LeSabre | Rear Driveshaft - CV at Rear Axle |
| 2004–2007 | Buick | Rainier | Rear Driveshaft at Rear Axle |
| 2004–2007 | Buick | Rainier | Rear Driveshaft at Transmission |
| 1973–1987 | Buick | Regal | Rear Driveshaft at Rear Axle |
| 1973–1987 | Buick | Regal | Rear Driveshaft at Transmission |
| 1963–1970 | Buick | Riviera | Rear Driveshaft - CV at Rear Axle |
| 1963–1970 | Buick | Riviera | Rear Driveshaft - CV at Support Bearing |
| 1963–1970 | Buick | Riviera | Rear Driveshaft - CV at Transmission |
| 1971–1978 | Buick | Riviera | Rear Driveshaft at Rear Axle |
| 1971–1978 | Buick | Riviera | Rear Driveshaft at Support Bearing |
| 1971–1978 | Buick | Riviera | Rear Driveshaft at Transmission |
| 1991–1996 | Buick | Roadmaster | Rear Driveshaft at Rear Axle |
| 1991–1996 | Buick | Roadmaster | Rear Driveshaft at Transmission |
| 1964–1972, 1975–1979 | Buick | Skylark | Rear Driveshaft at Rear Axle |
| 1964–1972, 1975–1979 | Buick | Skylark | Rear Driveshaft at Transmission |
| 1964–1969 | Buick | Special | Rear Driveshaft at Rear Axle |
| 1964–1969 | Buick | Special | Rear Driveshaft at Transmission |
| 1964–1972 | Buick | Sportwagon | Rear Driveshaft - CV at Rear Axle |
| 1964–1972 | Buick | Sportwagon | Rear Driveshaft at Rear Axle |
| 1964–1972 | Buick | Sportwagon | Rear Driveshaft at Transmission |
Plus 562 more applications in the Spicer catalog. Match by part number.
What's included
- (1) Spicer 5-3147X — Universal Joint Greaseable S44/3R Series
Specs
- Bearing Cap Diameter (1): 1.125 in
- Bearing Cap Diameter (2): 1.125 in
- Bearing Cap Finish: Ground
- Bearing Cap Type A: ISR
- Bearing Cap Type B: ISR
- Bearing Cap Type: Round with ISR Groove
- Distance Btw Snap Ring Grooves: 2.556
- Grease Fitting Location: Side of Cross
- Grease Type: N.L.G.I. Grade 2
- Grease Zerk Included: Yes
- Greaseable: Yes
- Hardware Included: No
- Length A (In): 2.556
- Length B (In): 2.556
Cross-reference
- Spicer part number: 5-3147X
