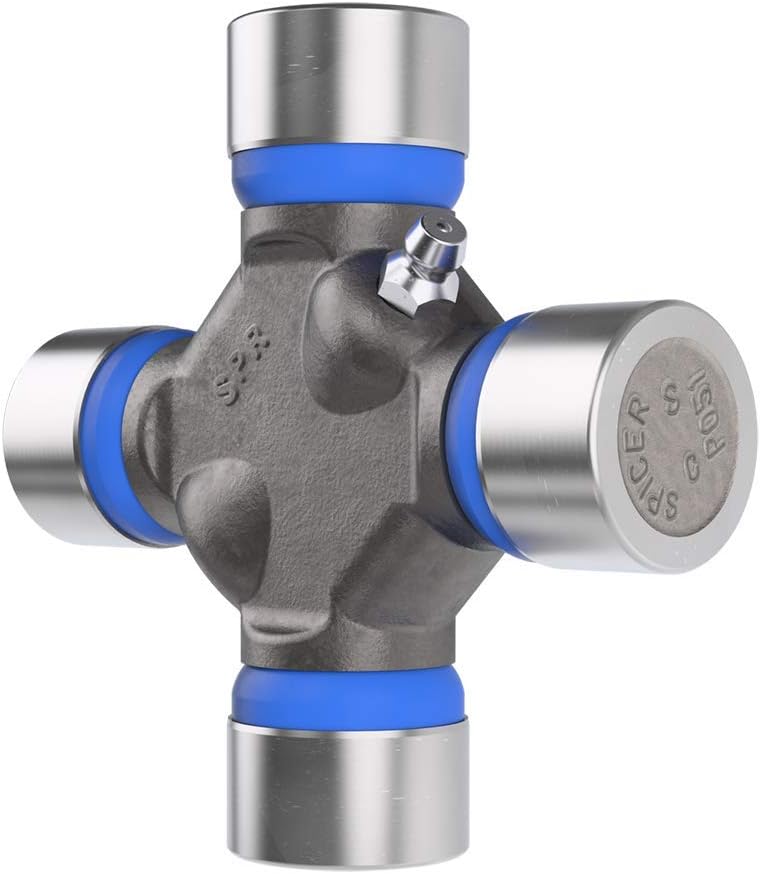

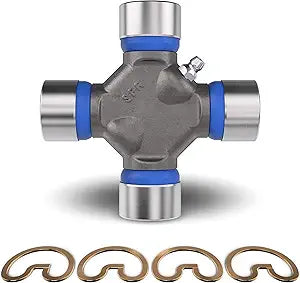

Genuine OEM Dana Spicer 1330 Series U-joint, OSR snap ring.
Quick facts
Who it's for: Anyone replacing Spicer part 5-213X. Match this part number to the one on your old part or your parts catalog.
Fits
| Years | Make | Model | Axle / position |
|---|---|---|---|
| 2000–2001 | AM General | Hummer | Front Driveshaft - CV at Transfer Case |
| 2000–2001 | AM General | Hummer | Front Driveshaft at Front Axle |
| 1959–1963 | Buick | Electra | Rear Driveshaft at Support Bearing |
| 1961–1963 | Buick | Electra | Rear Driveshaft at Transmission |
| 1959–1962 | Buick | Invicta | Rear Driveshaft - CV at Support Bearing |
| 1959–1962 | Buick | Invicta | Rear Driveshaft at Transmission |
| 1959–1963 | Buick | LeSabre | Rear Driveshaft at Support Bearing |
| 1961–1963 | Buick | LeSabre | Rear Driveshaft at Transmission |
| 1957–1958 | Buick | Roadmaster | Rear Driveshaft at Support Bearing |
| 1958–1962 | Cadillac | DeVille | Rear Driveshaft at Rear Axle |
| 1958–1962 | Cadillac | DeVille | Rear Driveshaft at Support Bearing |
| 1958–1962 | Cadillac | DeVille | Rear Driveshaft at Transmission |
| 1957–1962 | Cadillac | Eldorado | Rear Driveshaft at Rear Axle |
| 1957–1962 | Cadillac | Eldorado | Rear Driveshaft at Support Bearing |
| 1957–1962 | Cadillac | Eldorado | Rear Driveshaft at Transmission |
| 1958–1962 | Cadillac | Series 62 | Rear Driveshaft at Support Bearing |
| 1958–1962 | Cadillac | Series 62 | Rear Driveshaft at Transmission |
| 1958–1962 | Cadillac | Series 75 Fleetwood | Rear Driveshaft at Rear Axle |
| 1958–1962 | Cadillac | Series 75 Fleetwood | Rear Driveshaft at Support Bearing |
| 1958–1962 | Cadillac | Series 75 Fleetwood | Rear Driveshaft at Transmission |
| 1969–1971 | Checker | Marathon | Rear Driveshaft at Rear Axle |
| 1969–1971, 1974–1980 | Checker | Marathon | Rear Driveshaft at Transmission |
| 1969–1971 | Checker | Taxicab | Rear Driveshaft at Rear Axle |
| 1969–1971, 1974 | Checker | Taxicab | Rear Driveshaft at Transmission |
| 2002–2006 | Chevrolet | Avalanche 1500 | Rear Driveshaft at Transmission |
| 1975–1976 | Chevrolet | C10 | Rear Driveshaft at Transmission |
| 1968–1969 | Chevrolet | C10 Pickup | Rear Driveshaft at Rear Axle |
| 1968–1969 | Chevrolet | C10 Pickup | Rear Driveshaft at Transmission |
| 1968–1969 | Chevrolet | C10 Suburban | Rear Driveshaft at Rear Axle |
| 1968–1969 | Chevrolet | C10 Suburban | Rear Driveshaft at Transmission |
| 1988–1999 | Chevrolet | C1500 | Rear Driveshaft at Support Bearing |
| 1988–1999 | Chevrolet | C1500 | Rear Driveshaft at Transmission |
| 1992–1999 | Chevrolet | C1500 Suburban | Rear Driveshaft at Transmission |
| 1976–1977 | Chevrolet | C20 | Rear Driveshaft at Transmission |
| 1976–1977 | Chevrolet | C20 Suburban | Rear Driveshaft at Transmission |
| 1968–1969 | Chevrolet | C30 Pickup | Rear Driveshaft at Transmission |
| 2004–2012 | Chevrolet | Colorado | Rear Driveshaft at Transmission |
| 2005–2012 | Chevrolet | Colorado | Rear Driveshaft at Support Bearing |
| 1968–1982 | Chevrolet | Corvette | Rear Driveshaft at Rear Axle |
| 1968–1982 | Chevrolet | Corvette | Rear Driveshaft at Transmission |
Plus 343 more applications in the Spicer catalog. Match by part number.
What's included
- (1) Spicer 5-213X — Universal Joint Greaseable 1330 Series OSR
Specs

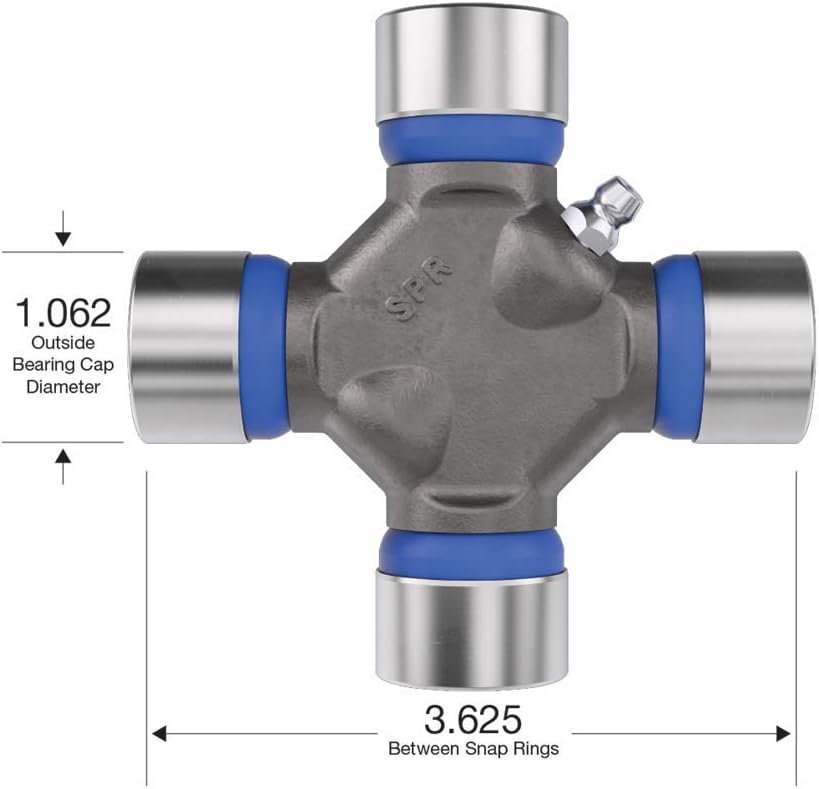

- Bearing Cap Diameter (1): 1.062 in
- Bearing Cap Diameter (2): 1.062 in
- Bearing Cap Finish: Ground
- Bearing Cap Type A: OSR
- Bearing Cap Type B: OSR
- Bearing Cap Type: Round
- Grease Fitting Location: Side of Cross
- Grease Type: N.L.G.I. Grade 2
- Grease Zerk Included: Yes
- Greaseable: Yes
- Hardware Included: No
- Length A (In): 3.625
- Length B (In): 3.625
- Material: Steel
Cross-reference
- Spicer part number: 5-213X
