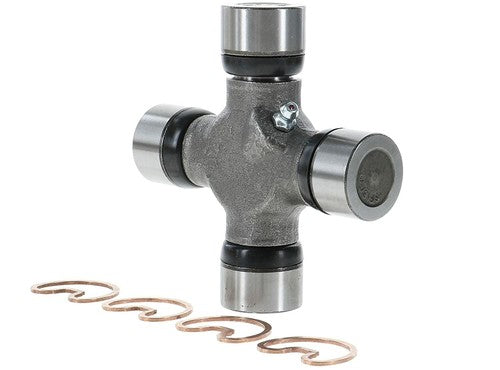

Spicer 5-160X 1410 Series Greaseable Universal Joint (OSR Style)

Restore smooth operation, eliminate highway driveline vibrations, and preserve long-term serviceability with this genuine Spicer 5-160X 1410 Series Universal Joint. Engineered as a high-durability, original equipment manufacturer (OEM) replacement component, this Outside Snap Ring (OSR) universal joint is designed to safely handle heavy rotational torque profiles across a broad spectrum of light-to-medium duty trucks, SUVs, and performance vehicles.

On hard-working trucks and off-road 4x4s, the 1410 series is widely trusted for its structural strength and increased angular operating capacity over smaller series designs. Over high mileage, intensive commercial towing, or demanding trail use, the internal needle rollers inside the u-joint bearing caps experience natural friction wear and moisture exposure. A compromised universal joint introduces structural slack into your driveshaft assembly, resulting in a persistent chassis shudder under load, a high-pitched squeak at low speeds, or a harsh metal clunking sound when shifting into gear. Replacing a loose joint early helps prevent severe on-road component failure, protecting your transmission tailshaft, transfer case, and vehicle undercarriage from secondary damage.

Precision-manufactured by Dana Spicer, the industry gold standard in drivetrain technology, the 5-160X is forged from premium-grade alloy steel for outstanding fatigue resistance and high torsional rigidity. This classic cross design features an integrated, centralized grease zerk fitting, enabling you to manually flush out old grease, road salt, and trail grime during routine maintenance intervals. Case-hardened bearing cups house precision needle rollers and robust multi-lip elastomeric rubber seals to maximize lubrication retention while keeping environmental contaminants permanently locked out.

Kit Contents:

• (1) Genuine Spicer 1410 Series Greaseable Universal Joint Cross

• (4) Precision-Ground Bearing Cups with High-Density Needle Rollers

• (4) High-Tensile External Outside Snap Rings

• (1) Thread-In Grease Zerk Fitting

Kit Highlights:

• Fully Maintenance-Greaseable: Equipped with an accessible grease zerk built directly into the cross body, making it easy to purge contaminants and prolong service life on heavily worked trucks or off-road rigs.

• Forged Structural Rigidity: Fabricated from high-tensile alloy steel and heat-treated for maximum grain density, delivering excellent torque capacity under acceleration and heavy payloads.

• Premium Multi-Lip Sealing: Features durable elastomeric cup seals that hold tight under grease gun pressure while maintaining an absolute barrier against water, road brine, and dust.

• Flawless OEM Fitment: Machined to exact factory blueprints to ensure a smooth, vibration-free press-fit into your driveshaft yoke, slip yoke, or pinion flange.

Drivetrain & Series Specifications:

• Yoke Retention Style: Outside Snap Ring (OSR) / External Lock-Up. Fits yokes designed for external retaining clips located on the outer side of the yoke ears.

• Series Identification: 1410 Series Driveline Architecture.

• Bearing Cup Diameter: 1.188 inches (30.2 mm).

• Cap-to-Cap Width: 4.188 inches (106.4 mm).

• Common Applications: Rear or front driveshaft positions on various three-quarter-ton and one-ton pickup trucks (Ford Super Duty, Chevy Silverado, GMC Sierra, Ram HD), lifted 4x4 vehicles, and custom commercial utility trucks running 1410 series yokes.
