Spicer 5-1330X U-Joint Kit 1330 Series (OSR)
Spicer 5-1330X U-Joint Kit 1330 Series (OSR)
Regular price
$36.75 USD
Regular price
Sale price
$36.75 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Free shipping in the continental USA. Ships same day via UPS if ordered by 12pm M/F. 30-day returns on unused items in original packaging (sale items excluded). Questions: sales@platinumperformanceparts.com

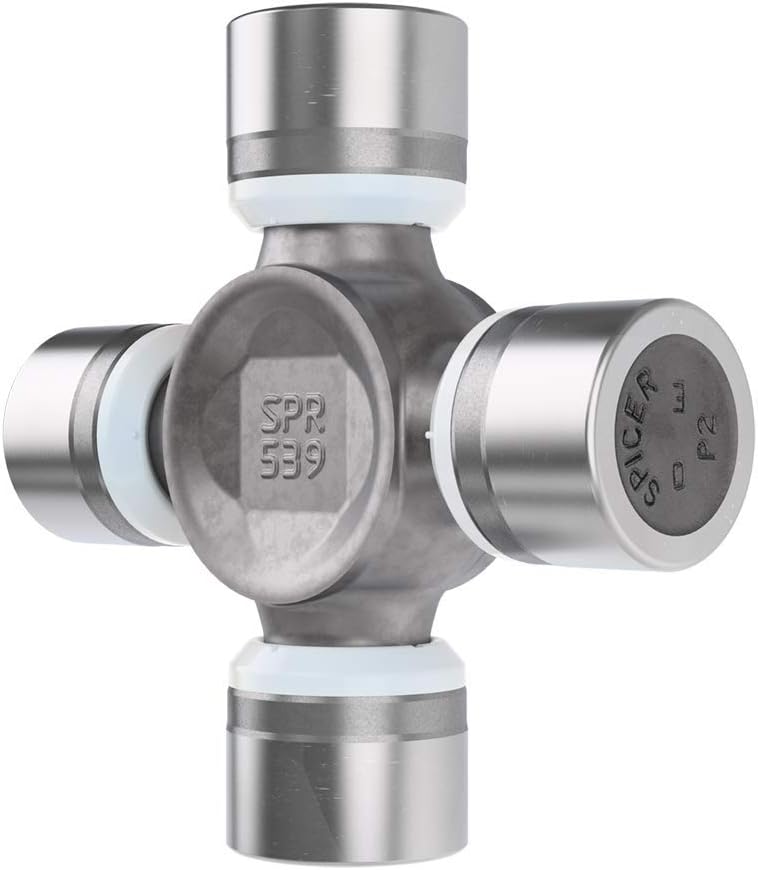

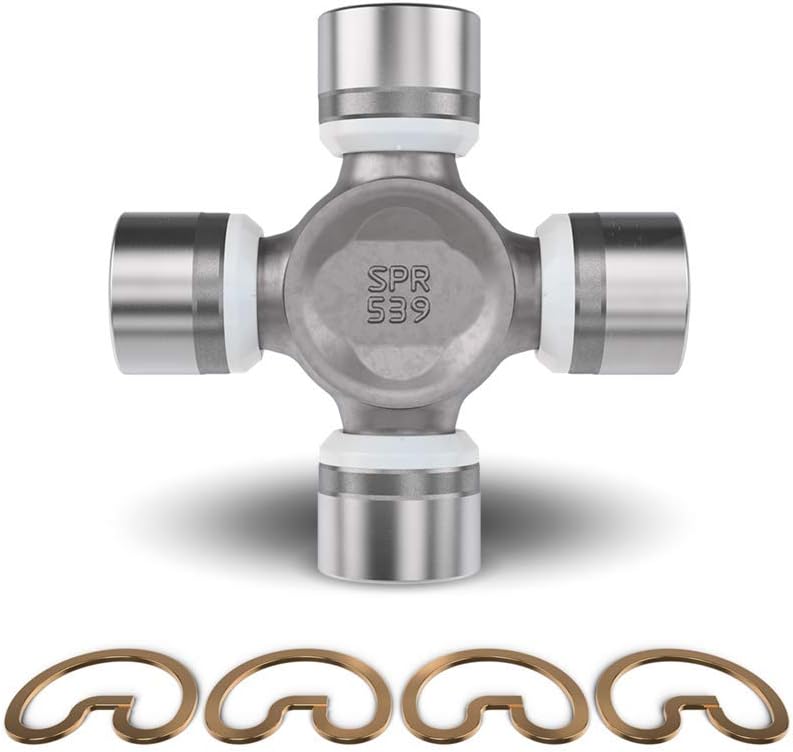

Genuine OEM Dana Spicer 1330 Series U-joint, OSR snap ring.
Quick facts
Who it's for: Anyone replacing Spicer part 5-1330X. Match this part number to the one on your old part or your parts catalog.
Fits
| Years | Make | Model | Axle / position |
|---|---|---|---|
| 2000–2001 | AM General | Hummer | Front Driveshaft - CV at Transfer Case |
| 2000–2001 | AM General | Hummer | Front Driveshaft at Front Axle |
| 1959–1963 | Buick | Electra | Rear Driveshaft at Support Bearing |
| 1961–1963 | Buick | Electra | Rear Driveshaft at Transmission |
| 1959–1962 | Buick | Invicta | Rear Driveshaft - CV at Support Bearing |
| 1959–1962 | Buick | Invicta | Rear Driveshaft at Transmission |
| 1959–1963 | Buick | LeSabre | Rear Driveshaft at Support Bearing |
| 1961–1963 | Buick | LeSabre | Rear Driveshaft at Transmission |
| 1957–1958 | Buick | Roadmaster | Rear Driveshaft at Support Bearing |
| 1958–1962 | Cadillac | DeVille | Rear Driveshaft at Rear Axle |
| 1958–1962 | Cadillac | DeVille | Rear Driveshaft at Support Bearing |
| 1958–1962 | Cadillac | DeVille | Rear Driveshaft at Transmission |
| 1957–1962 | Cadillac | Eldorado | Rear Driveshaft at Rear Axle |
| 1957–1962 | Cadillac | Eldorado | Rear Driveshaft at Support Bearing |
| 1957–1962 | Cadillac | Eldorado | Rear Driveshaft at Transmission |
| 1958–1962 | Cadillac | Series 62 | Rear Driveshaft at Support Bearing |
| 1958–1962 | Cadillac | Series 62 | Rear Driveshaft at Transmission |
| 1958–1962 | Cadillac | Series 75 Fleetwood | Rear Driveshaft at Rear Axle |
| 1958–1962 | Cadillac | Series 75 Fleetwood | Rear Driveshaft at Support Bearing |
| 1958–1962 | Cadillac | Series 75 Fleetwood | Rear Driveshaft at Transmission |
| 1969–1971 | Checker | Marathon | Rear Driveshaft at Rear Axle |
| 1969–1971, 1974–1980 | Checker | Marathon | Rear Driveshaft at Transmission |
| 1969–1971 | Checker | Taxicab | Rear Driveshaft at Rear Axle |
| 1969–1971, 1974 | Checker | Taxicab | Rear Driveshaft at Transmission |
| 2002–2006 | Chevrolet | Avalanche 1500 | Rear Driveshaft at Transmission |
| 1975–1976 | Chevrolet | C10 | Rear Driveshaft at Transmission |
| 1968–1969 | Chevrolet | C10 Pickup | Rear Driveshaft at Rear Axle |
| 1968–1969 | Chevrolet | C10 Pickup | Rear Driveshaft at Transmission |
| 1968–1969 | Chevrolet | C10 Suburban | Rear Driveshaft at Rear Axle |
| 1968–1969 | Chevrolet | C10 Suburban | Rear Driveshaft at Transmission |
| 1988–1999 | Chevrolet | C1500 | Rear Driveshaft at Support Bearing |
| 1988–1999 | Chevrolet | C1500 | Rear Driveshaft at Transmission |
| 1992–1999 | Chevrolet | C1500 Suburban | Rear Driveshaft at Transmission |
| 1976–1977 | Chevrolet | C20 | Rear Driveshaft at Transmission |
| 1976–1977 | Chevrolet | C20 Suburban | Rear Driveshaft at Transmission |
| 1968–1969 | Chevrolet | C30 Pickup | Rear Driveshaft at Transmission |
| 2004–2012 | Chevrolet | Colorado | Rear Driveshaft at Transmission |
| 2005–2012 | Chevrolet | Colorado | Rear Driveshaft at Support Bearing |
| 1968–1982 | Chevrolet | Corvette | Rear Driveshaft at Rear Axle |
| 1968–1982 | Chevrolet | Corvette | Rear Driveshaft at Transmission |
Plus 343 more applications in the Spicer catalog. Match by part number.
What's included
- (1) Spicer 5-1330X — Universal Joint; Non-Greaseable
Specs

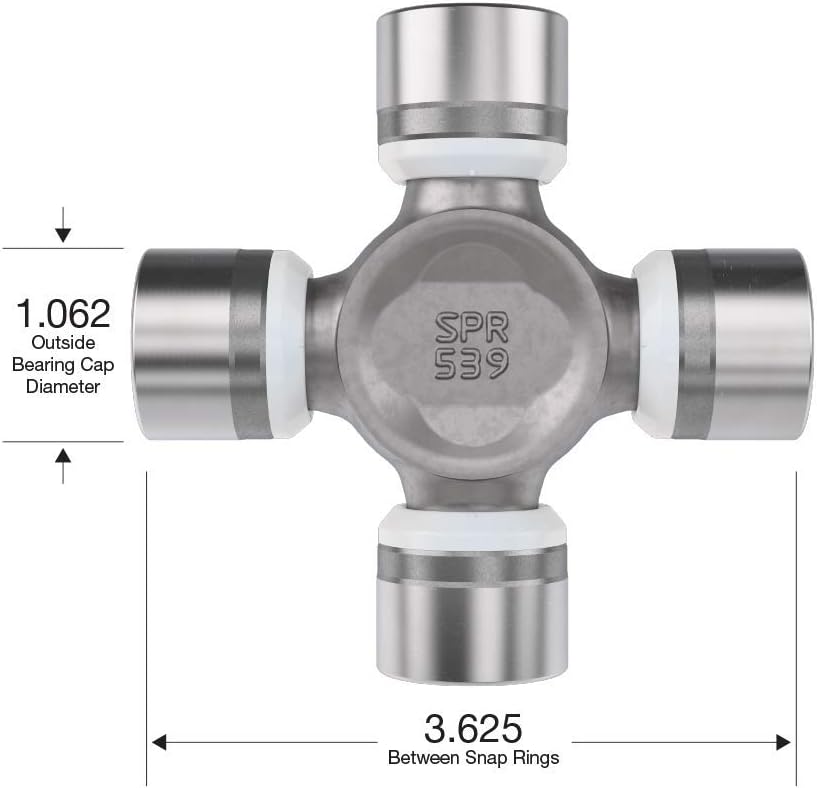

- Bearing Cap Diameter (1): 1.062 in
- Bearing Cap Diameter (2): 1.062 in
- Bearing Cap Type A: OSR
- Bearing Cap Type B: OSR
- Bearing Cap Type: Round
- Grease Zerk Included: Not Required
- Greaseable: No
- Hardware Included: No
- Length A (In): 3.625
- Length B (In): 3.625
- Material: Steel
- Mounting Hardware Included: No
- OEM Mfg: Spicer
- OEM Series: 1330/SPL25
Cross-reference
- Spicer part number: 5-1330X
