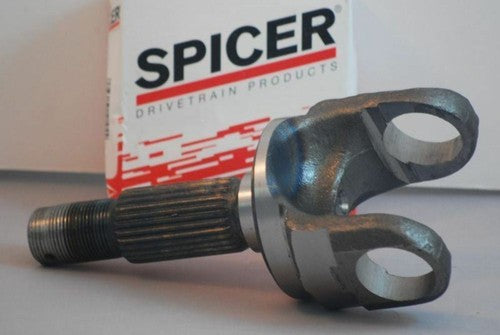

Spicer 43205 Front Outer Stub Axle Shaft for Jeep Wrangler TJ, YJ & Cherokee XJ (Dana 30 / 44, 27-Spline)

Restore factory-original strength, resolve front wheel end clicking, and upgrade your front axle resilience with this genuine Spicer 43205 Front Outer Stub Axle Shaft. Engineered as a direct original equipment manufacturer (OEM) replacement component, this high-durability 27-spline outer stub shaft is designed to fit classic open-knuckle solid Dana 30 and Dana 44 front steer axles across generations of legendary Jeep vehicles.

On solid-axle Jeep 4x4 platforms, the front outer stub shaft passes directly through the wheel hub assembly to transfer rotational power to the front wheels. Because it handles extreme steering angles while operating under constant torque, the outer yoke ears are highly susceptible to fatigue. Over high mileage, hard off-road wheeling, or running oversized mud-terrain tires, the u-joint bearing cap holes can stretch or ovalize. This deformation allows the universal joint to shift, which rapidly leads to snapped needle bearings, severe clicking sounds while turning, or total ears-shearing driveline failure. Replacing a compromised factory unit with an authentic Spicer shaft restores structural integrity to your steering knuckle configuration.

Manufactured by Dana Spicer, the original drivetrain supplier for Jeep, the 43205 stub shaft is forged from premium carbon steel and heat-treated to exact metallurgical specifications. This single-piece outer shaft features a 27 outboard spline layout and is precisely dimensioned at 6.11 inches from the universal joint centerline to the spline tip. It is machined specifically to accept the upgraded, heavy-duty Spicer 5-760X or classic 5-297X 1310-series axle universal joints (1.188-inch bearing cup diameters). Whether you are recovering from an unexpected trail breakage or rebuilding an old axle housing, sourcing this genuine OEM component guarantees a smooth, vibration-free fitment that matches factory blueprints.

Component Highlights:

• Universal Left or Right Application: Precision-machined to fit interchangeably on either the front driver side or front passenger side outer axle yoke layout.

• Upgraded Yoke Integrity: Features precision-bored cap retention holes to ensure a tight press-fit for your 1310-series universal joint caps, stopping rotational vibration.

• ABS & Non-ABS Versatility: Ships in a non-ABS layout, but features a factory-machined landing shoulder allowing users with ABS-equipped Jeeps to easily press on a replacement tone ring (Spicer Part #44646).

• Genuine Spicer OEM Forging: Manufactured with the same high-tensile material standards and tolerances used on the original factory assembly line to maximize torsional fatigue limit resistance.

Vehicle & Axle Fitment:

• Axle Profiles: Open-Knuckle Solid Front Dana 30 Axles and factory select Dana 44 Front Axles. Does not fit later JK, JL, or JT generation Wranglers, or custom aftermarket 30-spline outer axle hub conversions.

• Jeep Wrangler YJ: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, and 1995 4x4 models.

• Jeep Wrangler TJ / LJ: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, and 2006 models (including Rubicon models with Dana 44 front axles).

• Jeep Cherokee XJ: 1984–2001 sport-utility models.

• Jeep Comanche MJ: 1986–1992 pickup models.

• Jeep Grand Cherokee ZJ: 1993–1998 models running solid front axles.

• Position: Front Outer Axle Shaft Yoke — Fits Left (Driver) or Right (Passenger) Side. (Note: Sold individually; one shaft included per package).
