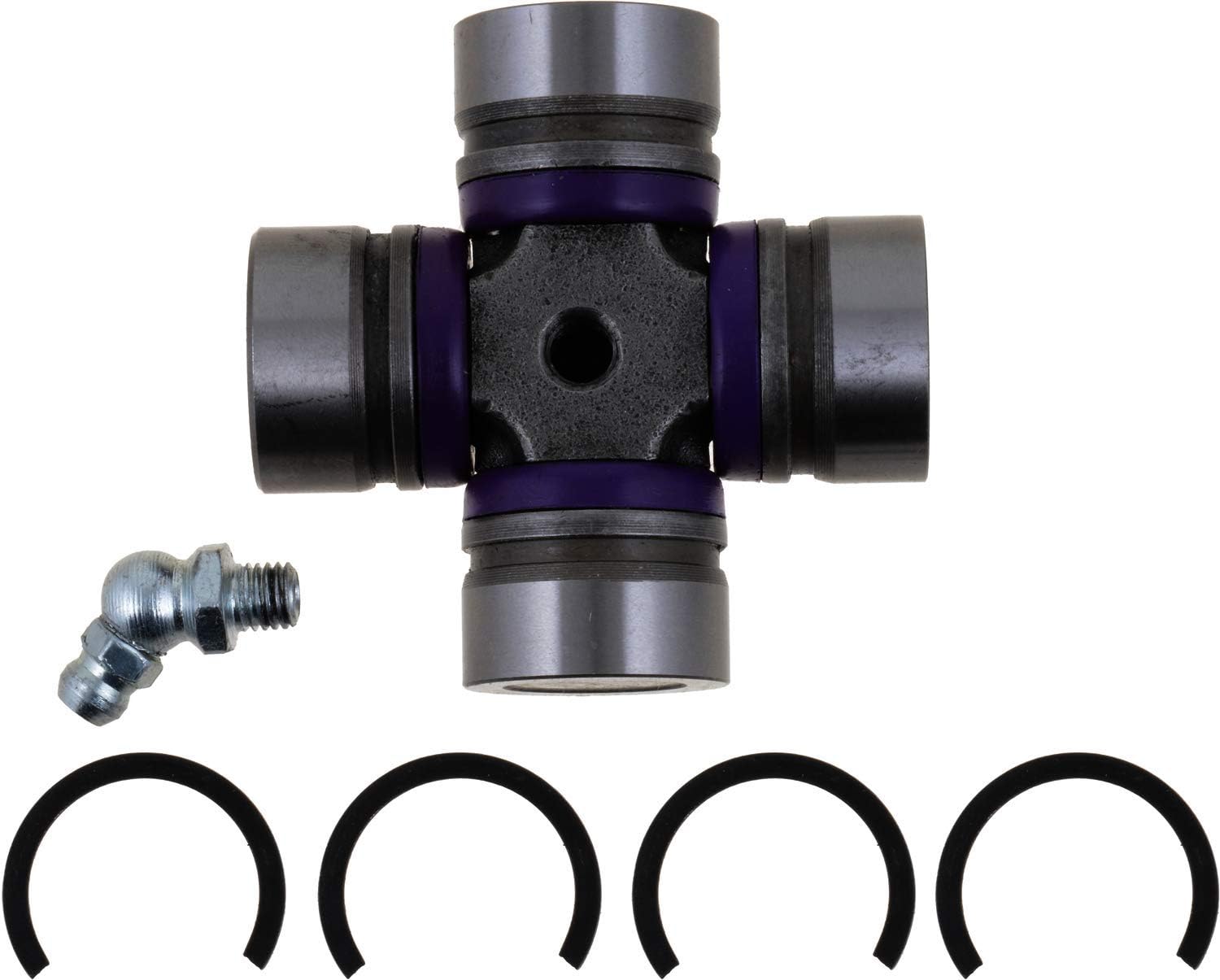

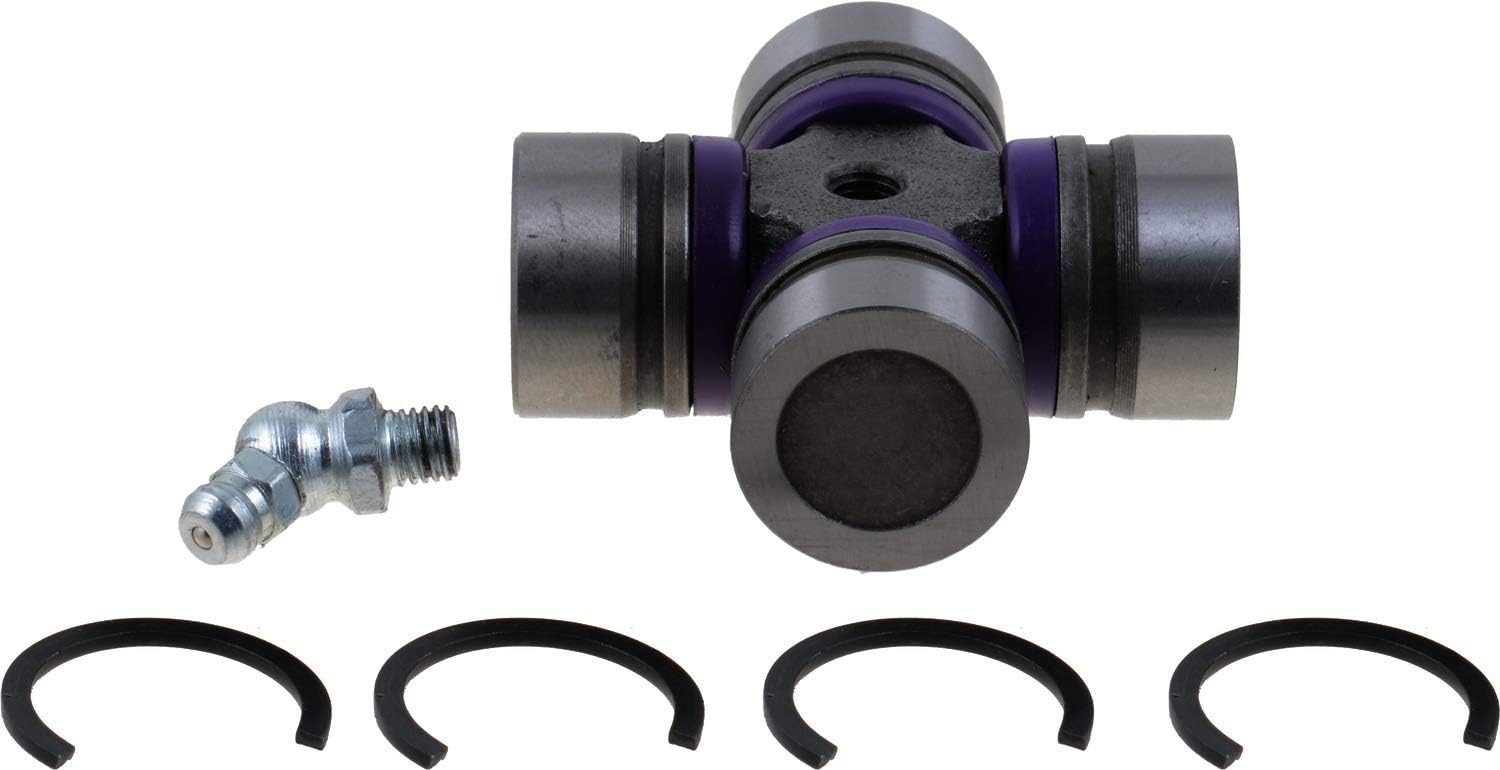

Spicer Select 25-170X U-Joint – 1000 Series (ISR)

Spicer Select 25-170X is a single 1000 Series universal joint from Dana's Spicer Select line, ISR style. It's sold individually and includes the snap rings.

Quick facts

• Brand: Spicer Select (Dana)
• Part number: 25-170X
• Series: 1000 Series
• Snap ring style: ISR (internal snap rings)
• Lubrication: Greaseable (zerk in center of cross)
• Bearing cap diameter: 0.938 in (23.8 mm)
• Span: 1.500 in between snap ring grooves (38.1 mm)
• Seals: purple rubber
• Material: steel

Fits

• Measure your old joint (cap diameter and span above) or match the part number before ordering. Need help? Email us your year, make and model.

What's included

• (1) Spicer Select 25-170X universal joint
• Snap rings

Cross-reference

• Spicer Select part number: 25-170X
• Interchanges with: Spicer 5-170X; Moog 1500; Neapco 1-0170

Shipping & returns

• Free shipping in the continental USA.
• Ships same day via UPS if ordered by 12pm Monday–Friday.
• 30-day returns on unused items in original packaging (sale items excluded). Questions: sales@platinumperformanceparts.com
