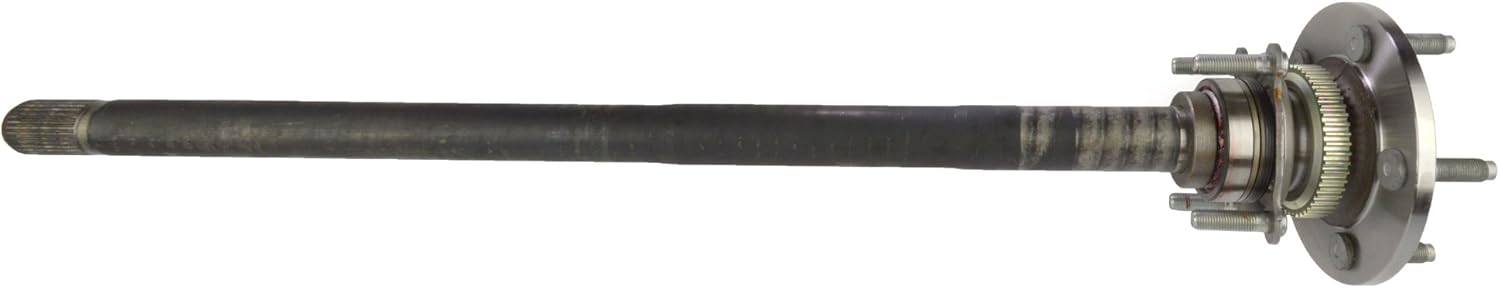

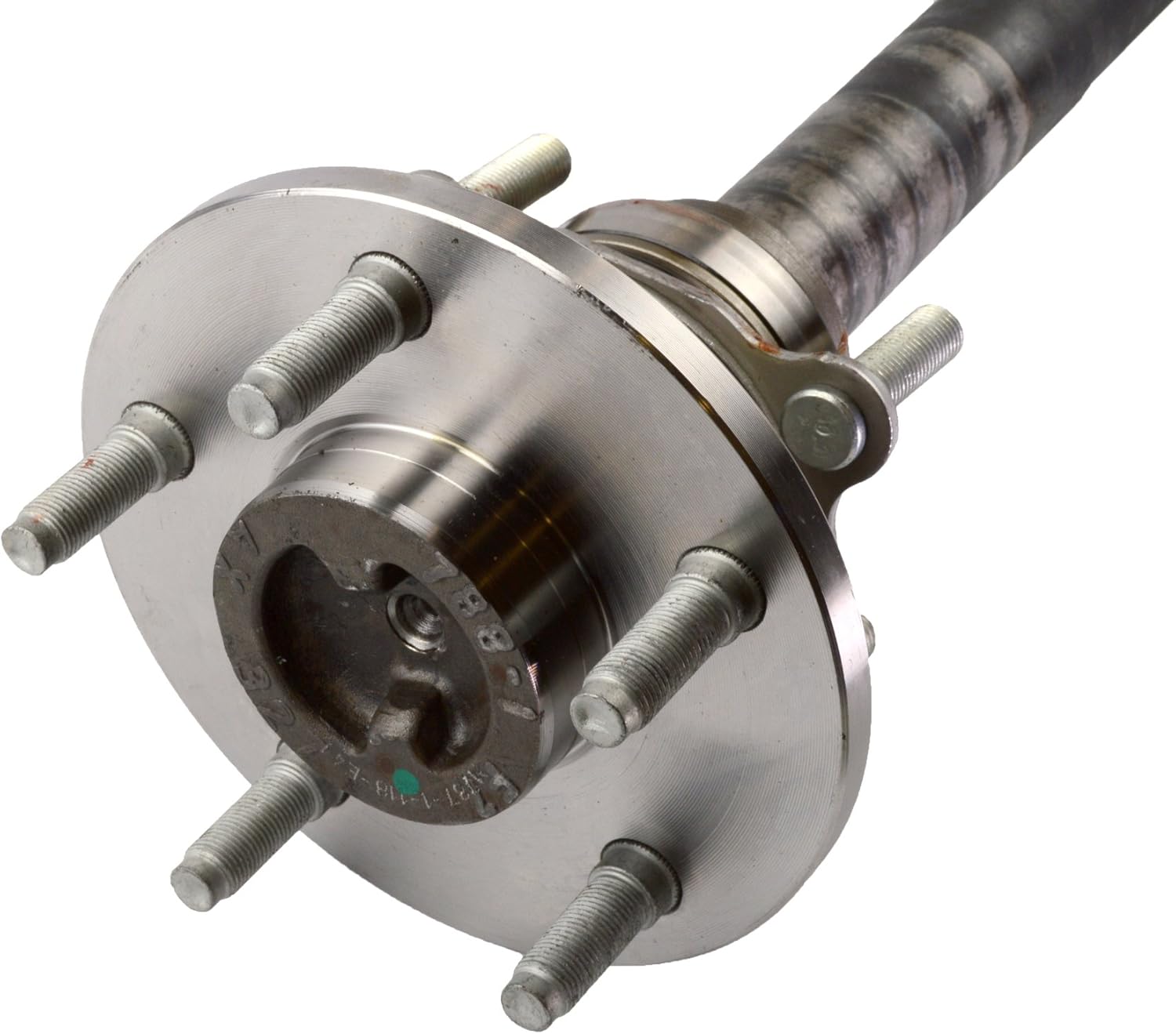

Spicer 2004785-3 Rear Axle Shaft Assembly DANA 44 with Axle Bearing and Seal
Spicer 2004785-3 Rear Axle Shaft Assembly DANA 44 with Axle Bearing and Seal
Regular price
$335.67 USD
Regular price
Sale price
$335.67 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Free shipping in the continental USA. Ships same day via UPS if ordered by 12pm M/F. 30-day returns on unused items in original packaging (sale items excluded). Questions: sales@platinumperformanceparts.com
Genuine OEM Dana Spicer rear axle shaft for Dana 44. High-strength chromoly steel, correct spline count, direct bolt-on replacement.
- Genuine OEM Dana Spicer
- In stock, ships fast
Quick facts
Who it's for: Anyone replacing Spicer part 2004785-3. Match this part number to the one on your old part or your parts catalog.
Fits
| Years | Make | Model | Axle / position |
|---|---|---|---|
| 2007–2017 | Jeep | Wrangler | Rear Right |
| 2018 | Jeep | Wrangler JK | Rear Right |
What's included
- (1) Spicer 2004785-3 — Drive Axle Shaft - With DANA Super 44 with Electronic Locking Differential
Specs
- ABS Sensor Ring Included: Yes
- ABS Sensor Ring Installed: Y
- ABS/Non-ABS: ABS
- Axle Cover Bolt Hole Qty: 10
- Axle Length (In): 32.540
- Axle Model: DANA 44
- Axle Shaft Included: Y
- Axle Spline Count: 32 Inboard
- Axle Type: Complete Assembly
- Bearing Included: Y
- Bearing Pilot Diameter (In): 1.565
- Bolt Pattern: 5 X 5.00
- Brake Pilot Diameter (In): 2.833
- Cover Bolt Quantity: 10
Cross-reference
- Spicer part number: 2004785-3
