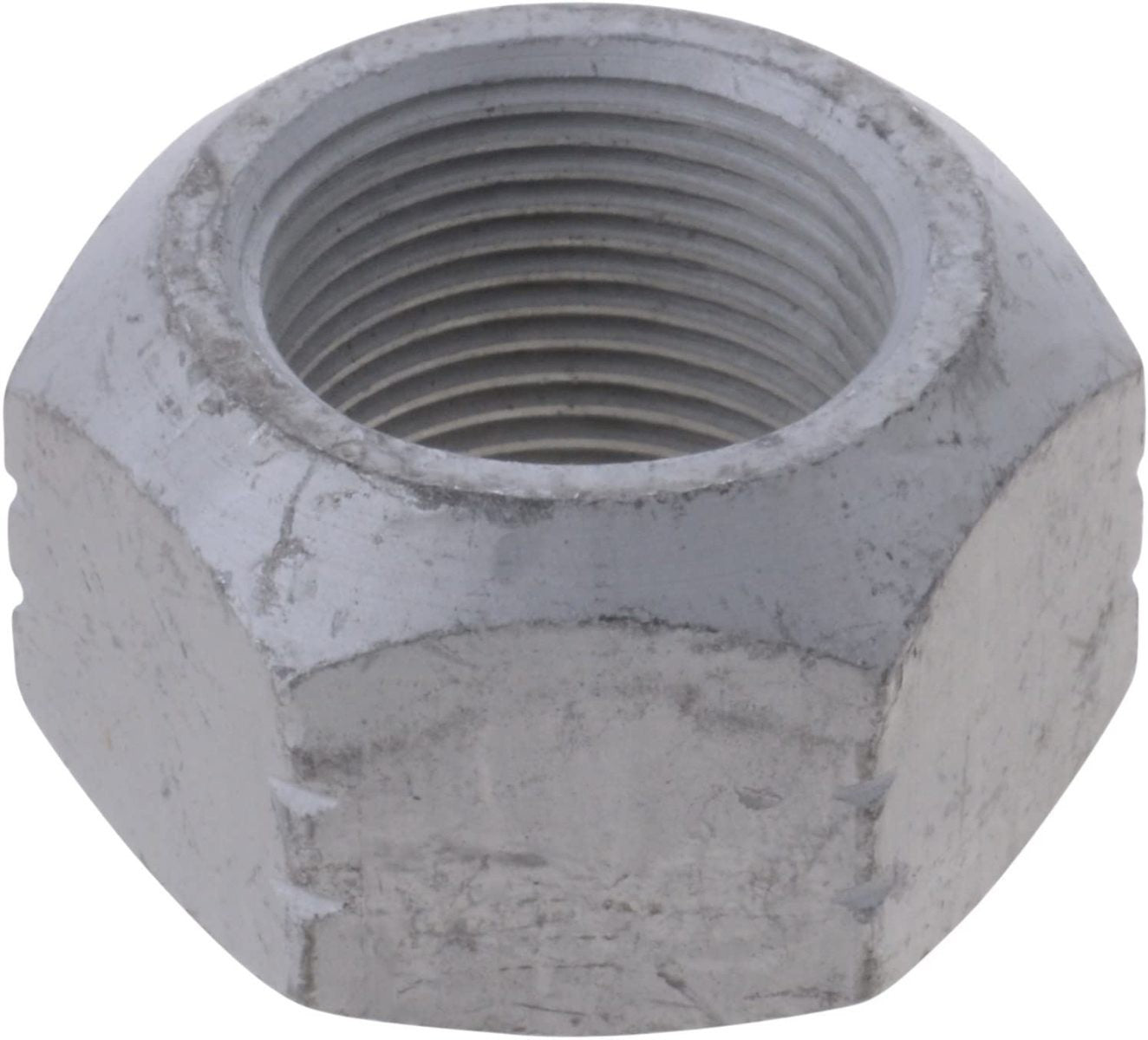

Spicer 2001855 Heavy-Duty Differential Pinion Lock Nut (Dana 80 Axles, 1.25"-12 Thread)

Lock down your ring and pinion gear set, establish precision bearing preload, and guarantee long-term rear differential structural integrity with this genuine Spicer Heavy-Duty Differential Pinion Lock Nut. Specifically engineered by Dana as a critical single-use original equipment manufacturer (OEM) replacement component, this high-tensile locking nut (Part Number: 2001855) is built exclusively for high-torque Dana 80 rear axle assemblies.

Within a vehicle's differential housing, the pinion nut holds the entire drive pinion gear and yoke sub-assembly together. It is responsible for clamping the pinion yoke down against the outer bearing race, compressing the internal crush sleeve (or shim stack) to achieve the precise rolling resistance known as pinion bearing preload. Because it directly absorbs the brutal, cyclic rotational shocks transmitted by heavy-duty commercial towing, high-payload hauling, and hard acceleration, a standard hardware nut cannot be used. Over miles of service, an old or reused nut will lose its thread tension and backing resistance. If a pinion nut backs off even a fraction of a millimeter, the pinion shaft develops dangerous forward-and-backward play, instantly throwing the ring and pinion teeth out of alignment. This movement causes aggressive gear howling, chipped gear teeth, destroyed bearings, and eventual total differential lockup.

Precision-machined from premium micro-alloy structural steel, the Spicer 2001855 nut is finished with a zinc phosphate coating to combat rust and moisture scaling. It incorporates an advanced self-locking thread profile that mechanically distorts slightly when torqued down, binding rigidly to the pinion shaft threads without the need for unreliable liquid threadlockers. It is an industry-mandated rule among professional gear builders to always discard and replace the old pinion nut whenever swapping a pinion seal, changing a yoke, or performing a complete ring and pinion gear ratio overhaul. Sourcing this authentic OEM replacement guarantees your drivetrain is rebuilt strictly to factory blueprint limits.

Component Highlights:

• Mechanical Self-Locking Design: Engineered with a specialized thread-binding constraint that prevents the nut from backing off or loosening under intense drivetrain resonance and temperature spikes.

• Establishes Critical Preload: Delivers the immense axial clamping force required to compress the pinion crush sleeve and securely dial in exact rotating torque specifications.

• Genuine Spicer OEM Forging: Fabricated to the exact material densities and structural thicknesses required to withstand the high torque loads of 1-ton and medium-duty commercial trucks.

• Zinc Phosphate Coating: Features a premium surface treatment that locks out road salt, moisture, and undercarriage grime to stop thread seizing and oxidation.

Axle & Dimensional Specifications:

• Axle Profile Compatibility: Fits heavy-duty Dana 80 Rear Differential Axles exclusively.

• Thread Profile Size: 1.250 inch - 12 UNF (1.25"-12).

• Hex Socket Head Size: 1-7/8 inch (46.46 mm).

• Overall Thickness: 1.155 inches (29.23 mm).

• Flange Outer Diameter: 1.843 inches (46.82 mm).

• Recommended Pairing: Fits in conjunction with the genuine Spicer 37104 pinion washer.

Common Vehicle Applications (Dana 80 Rear End Models):

• Ford Trucks & Vans: 1988–2016 Ford F-350 Dually (DRW), F-450, E-350, and E-450 Super Duty platforms.

• Dodge / RAM Trucks: 1994–2002 Dodge Ram 2500 (V10 & Cummins Diesel Manual models) and Ram 3500 dually models.

• GM / Chevrolet Trucks: 1990–2000 Chevrolet/GMC C3500, K3500, and 1996–2007 Express/Savana 3500 commercial vans.
