Spicer 1310 Front U-Joint Kit - 2003–2004 Ford Explorer AWD

For the front driveshaft on 2003–2004 Ford Explorer AWD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (2003, 2004):
Drive: AWD.
- Front Driveshaft at Front Axle: 1 x Spicer 5-153X - with 3.219in Outside Snap Ring Dimension; 1.062in Bearing Cap Diameter; Greaseable.

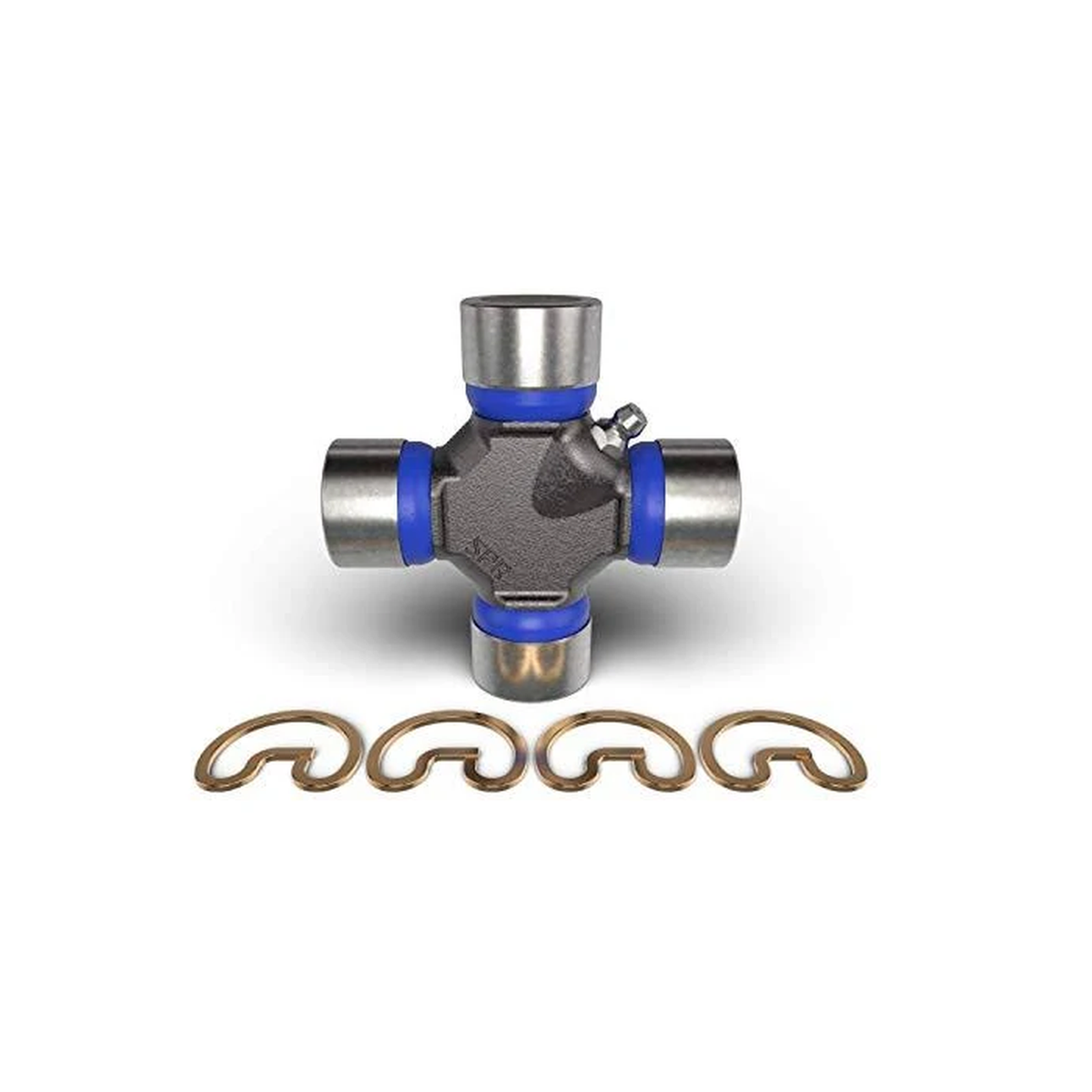

Includes: 1 x Spicer 5-153X.

Measure before ordering:
5-153X: 1.062-inch (26.975 mm) bearing caps on both axes; 3.219-inch (81.8 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.

Quick facts

Who it's for: Owners of 2003–2004 Ford Explorer AWD replacing this part.
