Spicer 29mm ISR Rear U-Joint Kit - 1995–1997 Toyota Tacoma RWD - Extended Cab, 2-pc rear shaft
Spicer 29mm ISR Rear U-Joint Kit - 1995–1997 Toyota Tacoma RWD - Extended Cab, 2-pc rear shaft
Couldn't load pickup availability
Free shipping in the continental USA. Ships same day via UPS if ordered by 12pm M/F. 30-day returns on unused items in original packaging (sale items excluded). Questions: sales@platinumperformanceparts.com
For the rear driveshaft on 1995–1997 Toyota Tacoma RWD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (1995, 1996, 1997):
Body/cab: Extended Cab Pickup; Drive: RWD.
- Rear Driveshaft at Rear Axle: 1 x Spicer 5-1510X - with 2 Piece Rear Driveshaft; Greaseable.
- Rear Driveshaft at Support Bearing: 1 x Spicer 5-1510X - with 2 Piece Rear Driveshaft; Greaseable.
- Rear Driveshaft at Transmission: 1 x Spicer 5-1510X - with 2 Piece Rear Driveshaft; Greaseable.

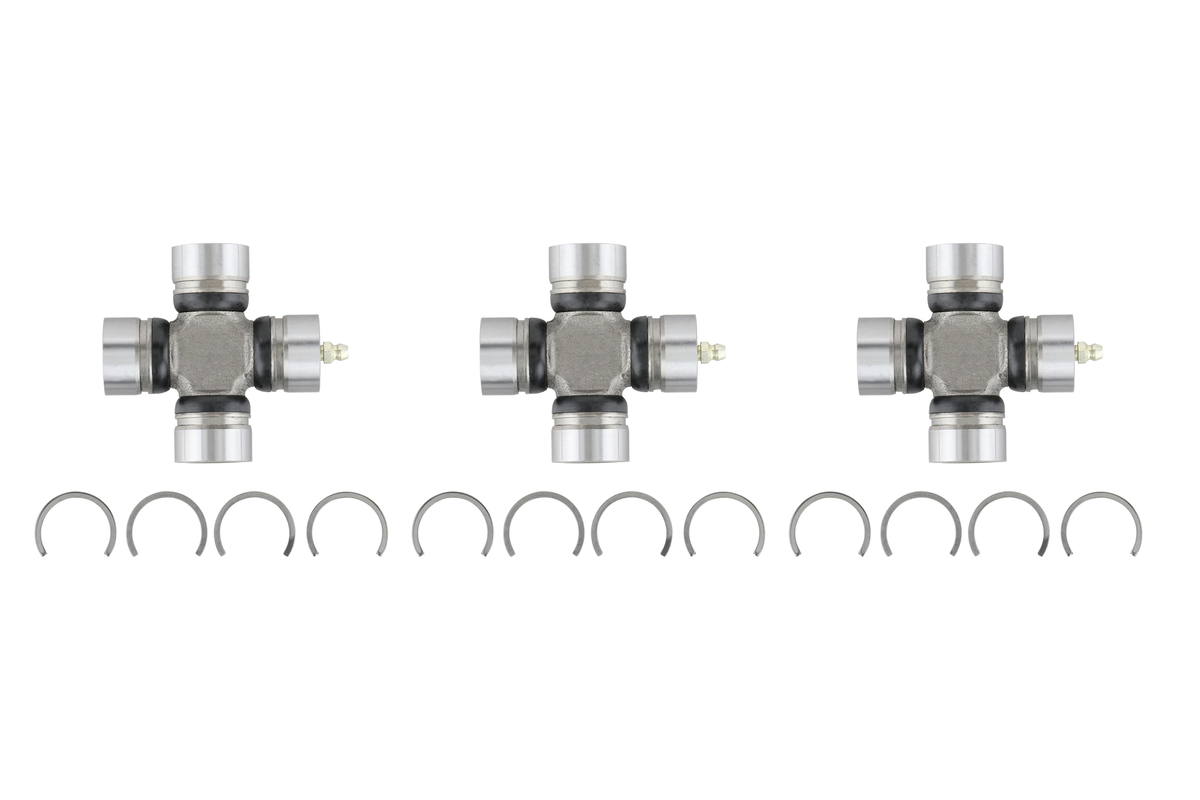

Includes: 3 x Spicer 5-1510X.
Measure before ordering:
5-1510X: 1.142-inch (29 mm) bearing caps on both axes; 2.047-inch (52 mm) inside snap-ring span (NOT overall width) on both axes. Inside snap rings (ISR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Measure the inside snap-ring span, not the overall cap-to-cap width. 5-1510X is Toyota series, not a 1510-series joint.
Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
