Spicer 29mm ISR Front U-Joint Kit - 1993–1998 Toyota T100 4WD

For the front driveshaft on 1993–1998 Toyota T100 4WD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (1993, 1994, 1995, 1996, 1997, 1998):
Drive: 4WD.
- Front Driveshaft at Front Axle: 1 x Spicer 5-1510X - Greaseable.

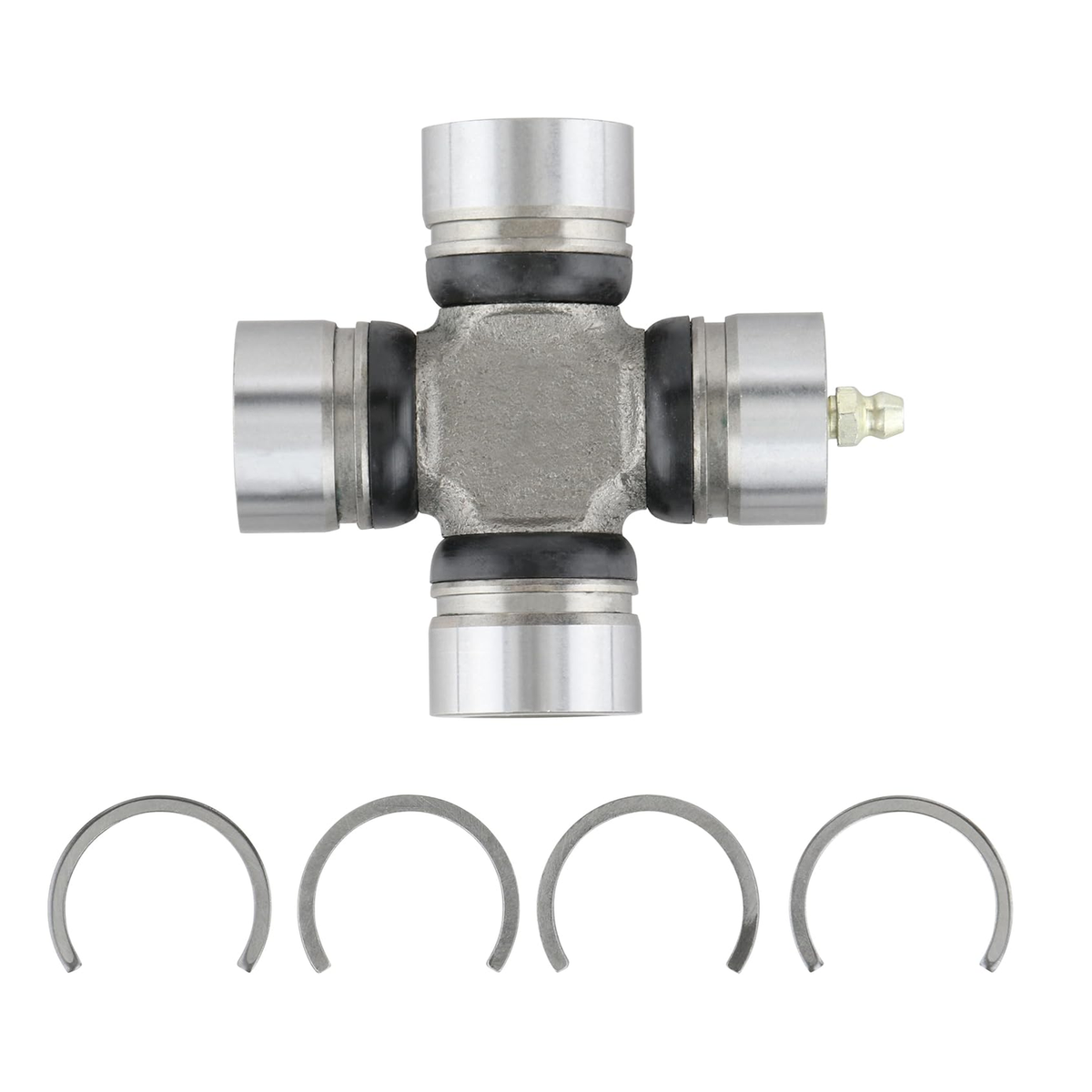

Includes: 1 x Spicer 5-1510X.

Measure before ordering:
5-1510X: 1.142-inch (29 mm) bearing caps on both axes; 2.047-inch (52 mm) inside snap-ring span (NOT overall width) on both axes. Inside snap rings (ISR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Measure the inside snap-ring span, not the overall cap-to-cap width. 5-1510X is Toyota series, not a 1510-series joint.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.

Quick facts

Who it's for: Owners of 1993–1998 Toyota T100 4WD replacing this part.

Fits
