For the front driveshaft on 2000–2024 Toyota 4Runner 4WD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024):
Drive: 4WD.
- Front Driveshaft at Front Axle: 1 x Spicer 5-1510X - Greaseable; with 1 Piece Rear Driveshaft.
- Front Driveshaft at Transfer Case: 1 x Spicer 5-1510X - Greaseable; with 1 Piece Rear Driveshaft.

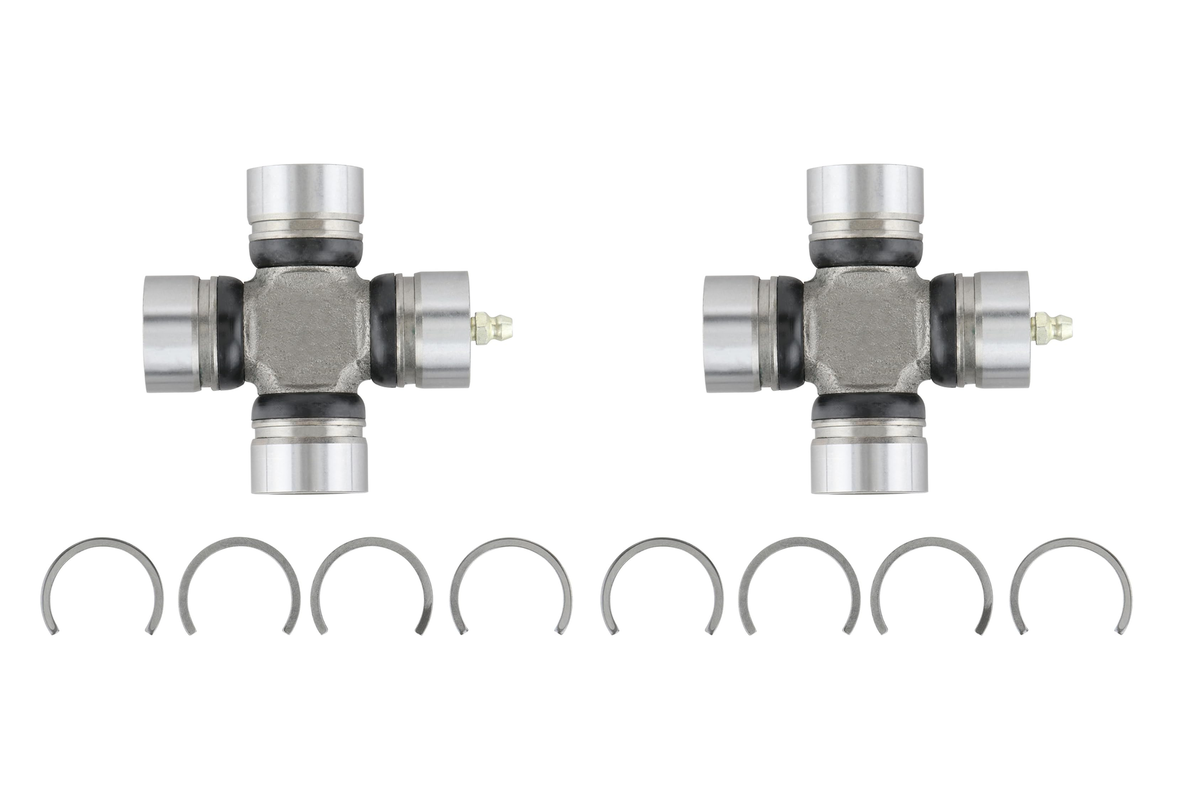

Includes: 2 x Spicer 5-1510X.
Measure before ordering:
5-1510X: 1.142-inch (29 mm) bearing caps on both axes; 2.047-inch (52 mm) inside snap-ring span (NOT overall width) on both axes. Inside snap rings (ISR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Measure the inside snap-ring span, not the overall cap-to-cap width. 5-1510X is Toyota series, not a 1510-series joint.
Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
