Spicer 1310 Rear Carrier & U-Joint Kit - 1996–1998 Nissan Pathfinder 4WD

For the rear driveshaft on 1996–1998 Nissan Pathfinder 4WD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (1996, 1997, 1998):
Drive: 4WD.
- Center support bearing: 1 x Spicer 211514X - Replaces OE Part Number(s) 37521-41L25, 37521-41L85, 37521-S2835, 3752141L25, 3752141L85, 37521S3825.
- Rear Driveshaft at Rear Axle: 1 x Spicer 5-153X - with 3.219in Outside Snap Ring Dimension; with Outside Snap Rings; 1.062in Bearing Cap Diameter; Greaseable.
- Rear Driveshaft at Transmission: 1 x Spicer 5-153X - with 3.219in Outside Snap Ring Dimension; with Outside Snap Rings; 1.062in Bearing Cap Diameter; Greaseable.

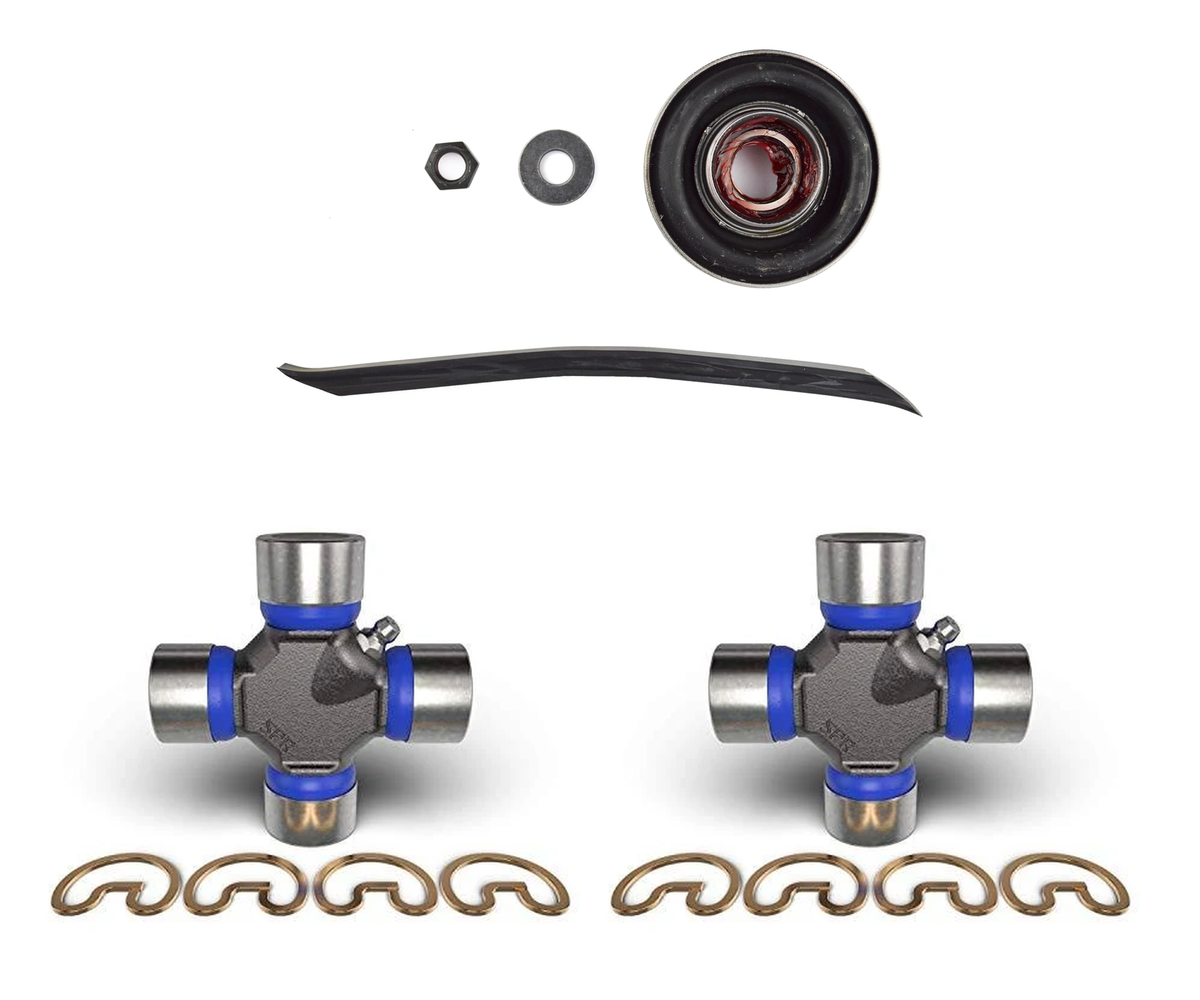

Includes: 1 x Spicer 211514X, 2 x Spicer 5-153X.

Measure before ordering:
211514X: 1.181-inch bearing bore/inside diameter. No mounting bracket is included; reuse only a verified compatible bracket. Mounting dimensions are not applicable.
5-153X: 1.062-inch (26.975 mm) bearing caps on both axes; 3.219-inch (81.8 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces.
For the bearing, check the shaft bearing seat/bore and the actual mounting arrangement. Mounting centers are not overall bracket length; center height is measured to the mounting surface.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
