Spicer 1310 Rear Carrier & U-Joint Kit - 1996–1997 Nissan Pickup 4WD - Regular Cab, usa built, 2-pc rear shaft, VIN starts 1N6

For the rear driveshaft on 1996–1997 Nissan Pickup 4WD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (1996, 1997):
Body/cab: Standard Cab Pickup; Drive: 4WD.
- Center support bearing: 1 x Spicer 211514X - Replaces OE Part Number(s) 37521S3825.
- Rear Driveshaft at Rear Axle: 1 x Spicer 5-153X - USA Built; with 2 Piece Rear Driveshaft; 1.062in Bearing Cap Diameter; Greaseable; with 3.219in Outside Snap Ring Dimension; with VIN starts 1N6.
- Rear Driveshaft at Support Bearing: 1 x Spicer 5-153X - USA Built; with 2 Piece Rear Driveshaft; 1.062in Bearing Cap Diameter; Greaseable; with 3.219in Outside Snap Ring Dimension; with VIN starts 1N6.
- Rear Driveshaft at Transmission: 1 x Spicer 5-153X - USA Built; with 2 Piece Rear Driveshaft; 1.062in Bearing Cap Diameter; Greaseable; with 3.219in Outside Snap Ring Dimension; with VIN starts 1N6.

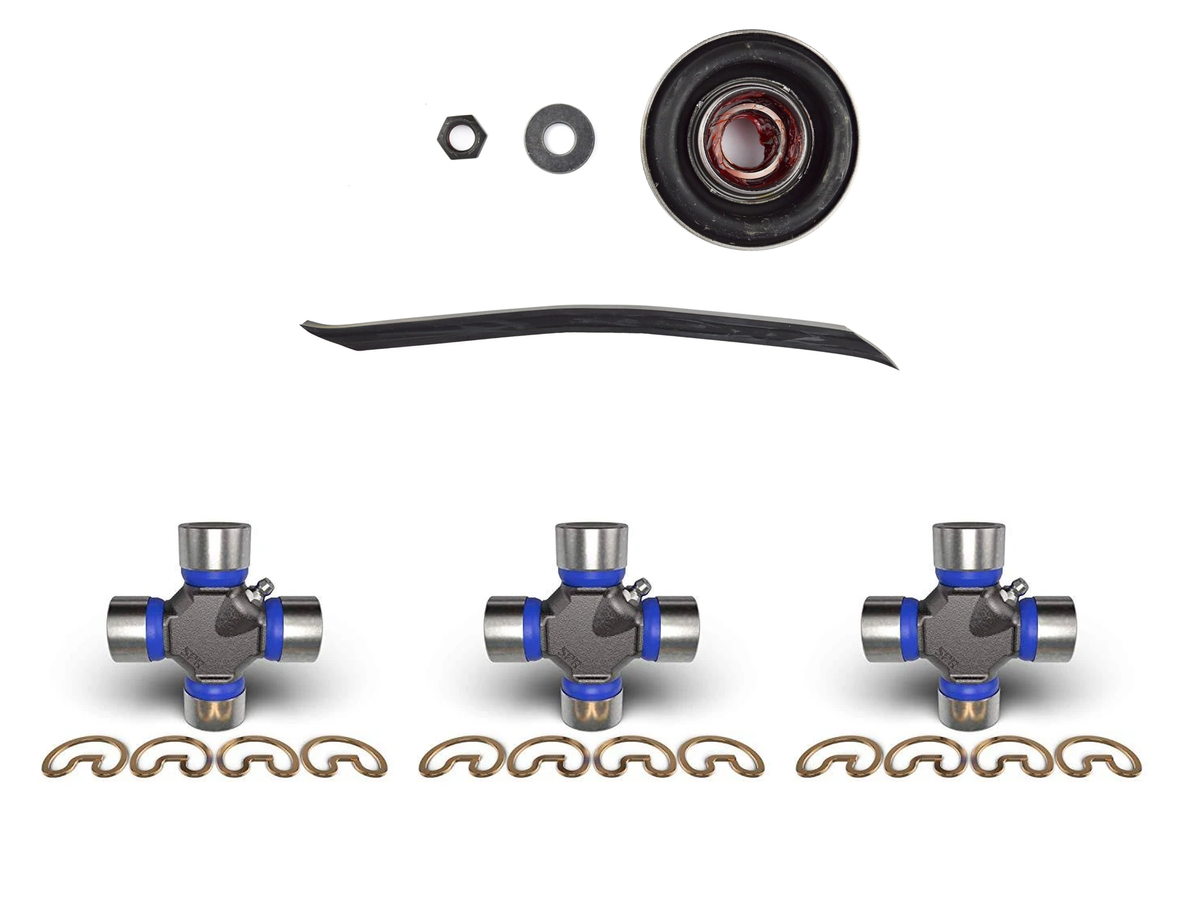

Includes: 1 x Spicer 211514X, 3 x Spicer 5-153X.

Measure before ordering:
211514X: 1.181-inch bearing bore/inside diameter. No mounting bracket is included; reuse only a verified compatible bracket. Mounting dimensions are not applicable.
5-153X: 1.062-inch (26.975 mm) bearing caps on both axes; 3.219-inch (81.8 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces.
For the bearing, check the shaft bearing seat/bore and the actual mounting arrangement. Mounting centers are not overall bracket length; center height is measured to the mounting surface.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
