Spicer 1310 Rear U-Joint Kit - 1986–1989 Nissan D21 RWD - 3.0L, 6-cyl, Extended Cab, usa built, 2-pc rear shaft, VIN starts 1N6

For the rear driveshaft on 1986–1989 Nissan D21 RWD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (1986, 1987, 1988, 1989):
Engine (L): 3.0; Cylinders: 6; Engine layout: V; C C: 2960; C I D: 181; Engine Bore Inches: 3.43; Engine Bore Metric: 87.0; Engine Stroke Inches: 3.27; Engine Stroke Metric: 83.0; Body/cab: Extended Cab Pickup; Drive: RWD.
- Rear Driveshaft at Rear Axle: 1 x Spicer 5-153X - 1.062in Bearing Cap Diameter; Greaseable; with 3.219in Outside Snap Ring Dimension; with VIN starts 1N6; USA Built; with 2 Piece Rear Driveshaft.
- Rear Driveshaft at Support Bearing: 1 x Spicer 5-153X - 1.062in Bearing Cap Diameter; Greaseable; with 3.219in Outside Snap Ring Dimension; with VIN starts 1N6; USA Built; with 2 Piece Rear Driveshaft.
- Rear Driveshaft at Transmission: 1 x Spicer 5-153X - 1.062in Bearing Cap Diameter; Greaseable; with 3.219in Outside Snap Ring Dimension; with VIN starts 1N6; USA Built; with 2 Piece Rear Driveshaft.

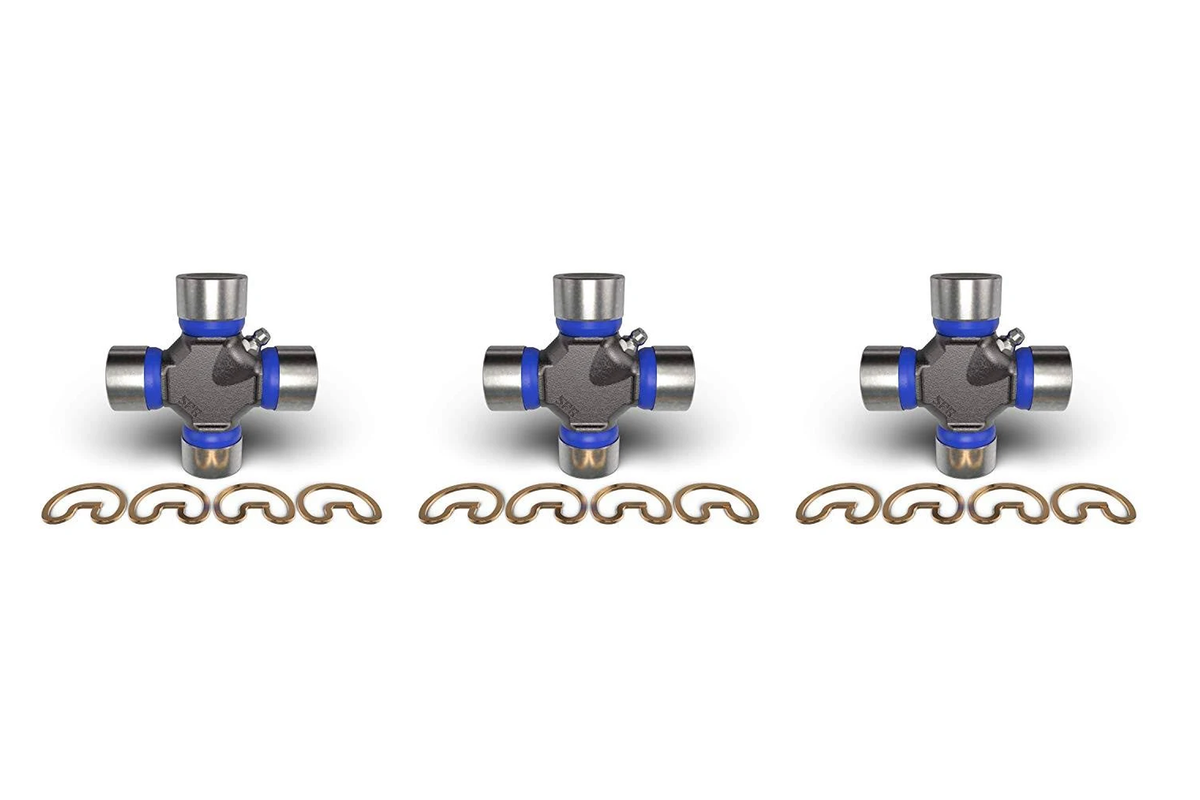

Includes: 3 x Spicer 5-153X.

Measure before ordering:
5-153X: 1.062-inch (26.975 mm) bearing caps on both axes; 3.219-inch (81.8 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
