Spicer 25mm Rear U-Joint Kit - 1990–1993 Dodge Ram 50 RWD - Auto, 84.0-in bed, 2-pc rear shaft
Spicer 25mm Rear U-Joint Kit - 1990–1993 Dodge Ram 50 RWD - Auto, 84.0-in bed, 2-pc rear shaft
Couldn't load pickup availability
Free shipping in the continental USA. Ships same day via UPS if ordered by 12pm M/F. 30-day returns on unused items in original packaging (sale items excluded). Questions: sales@platinumperformanceparts.com
For the rear driveshaft on 1990–1993 Dodge Ram 50 RWD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (1990, 1991, 1992, 1993):
Bed length (in): 84.0; Bed length (cm): 213.4; Drive: RWD; Transmission: Automatic.
- Rear Driveshaft at Rear Axle: 1 x Spicer 5-1503X - with 2 Piece Rear Driveshaft; Greaseable.
- Rear Driveshaft at Support Bearing: 1 x Spicer 5-1503X - with 2 Piece Rear Driveshaft; Greaseable.
- Rear Driveshaft at Transmission: 1 x Spicer 5-1503X - with 2 Piece Rear Driveshaft; Greaseable.

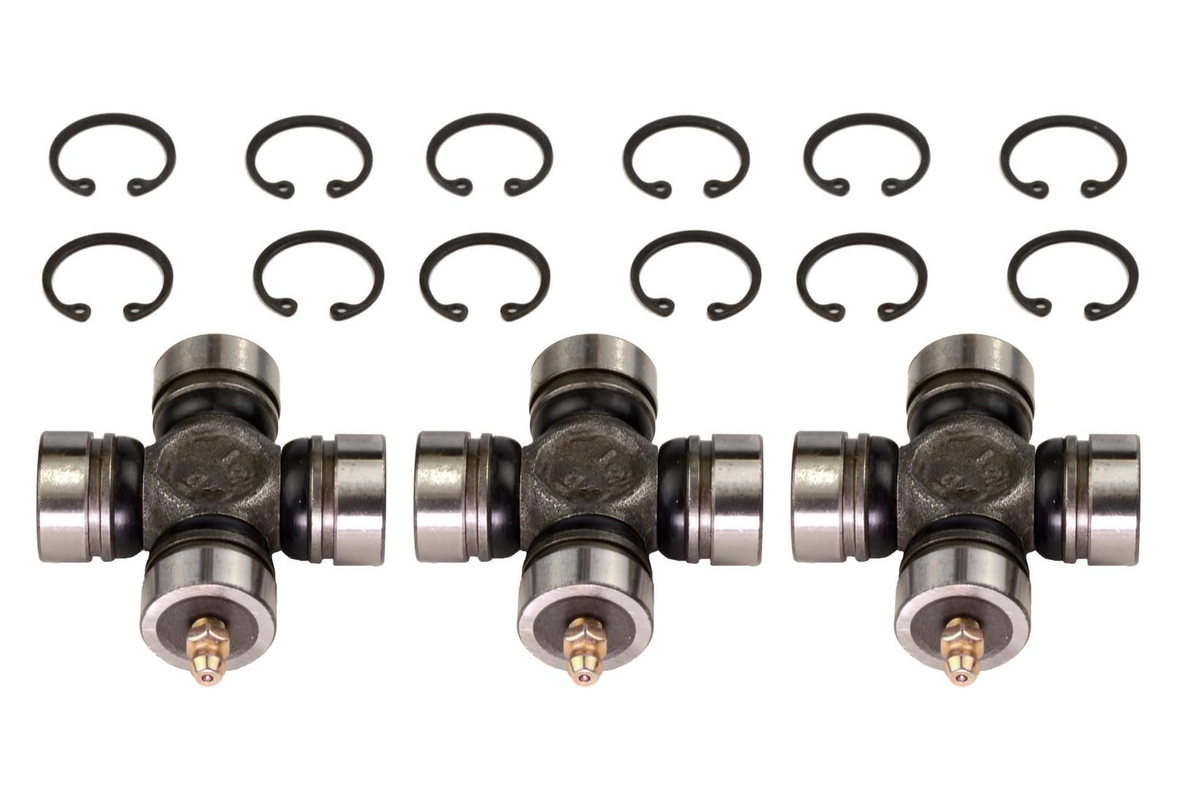

Includes: 3 x Spicer 5-1503X.
Measure before ordering:
5-1503X: 0.984-inch (25 mm) bearing caps on both axes; 2.498-inch (63.4 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces.
Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
