Spicer 25mm Front U-Joint Kit - 1998–2004 Chevy Tracker 4WD

For the front driveshaft on 1998–2004 Chevy Tracker 4WD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (1998, 1999, 2000, 2001, 2002, 2003, 2004):
Drive: 4WD.
- Front Driveshaft at Front Axle: 1 x Spicer 5-1503X - Greaseable.
- Front Driveshaft at Transfer Case: 1 x Spicer 5-1503X - Greaseable.

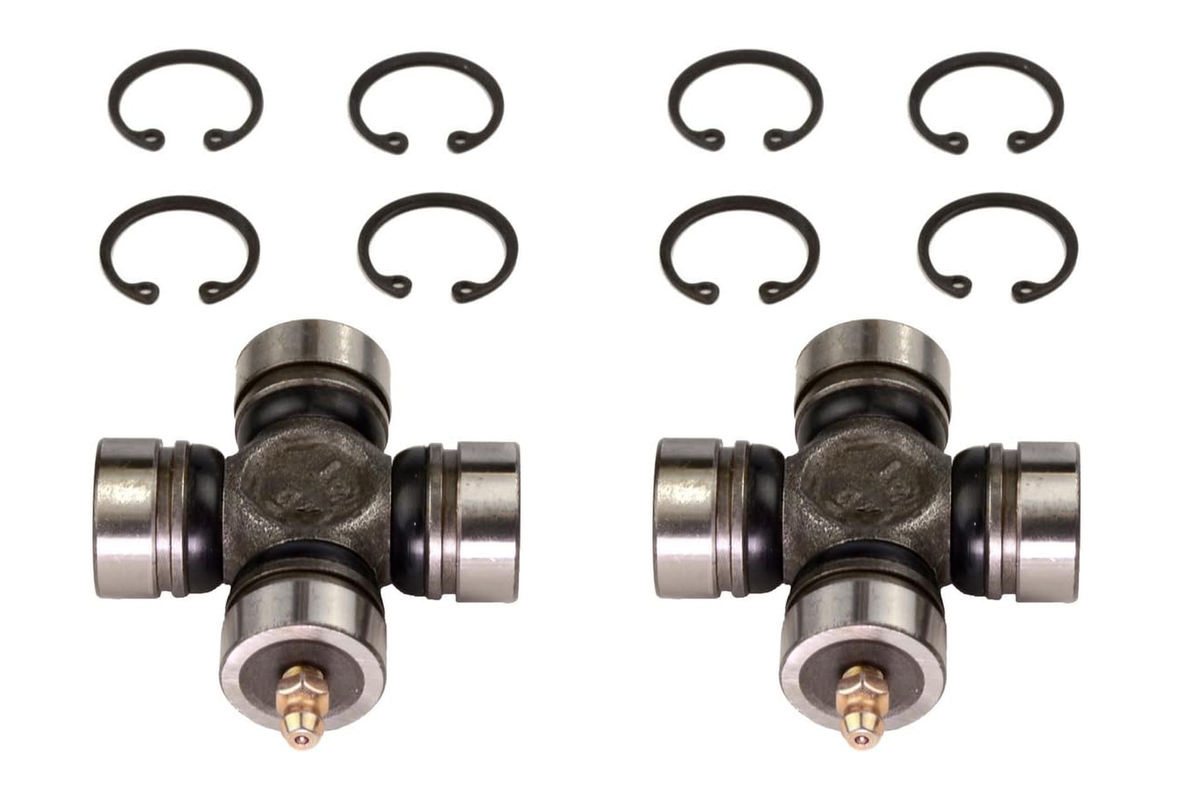

Includes: 2 x Spicer 5-1503X.

Measure before ordering:
5-1503X: 0.984-inch (25 mm) bearing caps on both axes; 2.498-inch (63.4 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.

Quick facts

Who it's for: Owners of 1998–2004 Chevy Tracker 4WD replacing this part.

Fits

Shipping & returns

• Free shipping in the continental USA.
• Ships same day via UPS if ordered by 12pm Monday–Friday.
• 30-day returns on unused items in original packaging (sale items excluded). Questions: sales@platinumperformanceparts.com
