Spicer 1410/1480 Rear U-Joint Kit - 2015 Chevy Silverado 2500 HD 2WD - 6.6L, 8-cyl, LT, Spicer shaft, 2-pc rear shaft, 1410 shaft

For the rear driveshaft on 2015 Chevy Silverado 2500 HD 2WD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (2015):
Trim: LT; Engine (L): 6.6; Cylinders: 8; Engine layout: V; C C: 6599; C I D: 403; Engine Bore Inches: 4.06; Engine Bore Metric: 103.0; Engine Stroke Inches: 3.90; Engine Stroke Metric: 99.0; Drive: RWD.
- Rear Driveshaft at Transmission: 1 x Spicer 5-160X - Greaseable; with 1410 Series Driveshaft; with Cap Diameter 1.188in; with Cap to Cap Dimension 4.188in; with Outside Snap Rings; with Spicer 1410 Series Driveshaft; 1.188in Bearing Cap Diameter; with 2 Piece Rear Driveshaft; with 4.188in Outside Snap Ring Dimension.
- Rear Driveshaft at Rear Axle: 1 x Spicer 5-188X - with 2 Piece Rear Driveshaft; with 4.188in Outside Snap Ring Dimension; 1.375in Bearing Cap Diameter; Greaseable.
- Rear Driveshaft at Support Bearing: 1 x Spicer 5-188X - Greaseable; with 2 Piece Rear Driveshaft; 1.375in Bearing Cap Diameter; with 4.188in Outside Snap Ring Dimension.

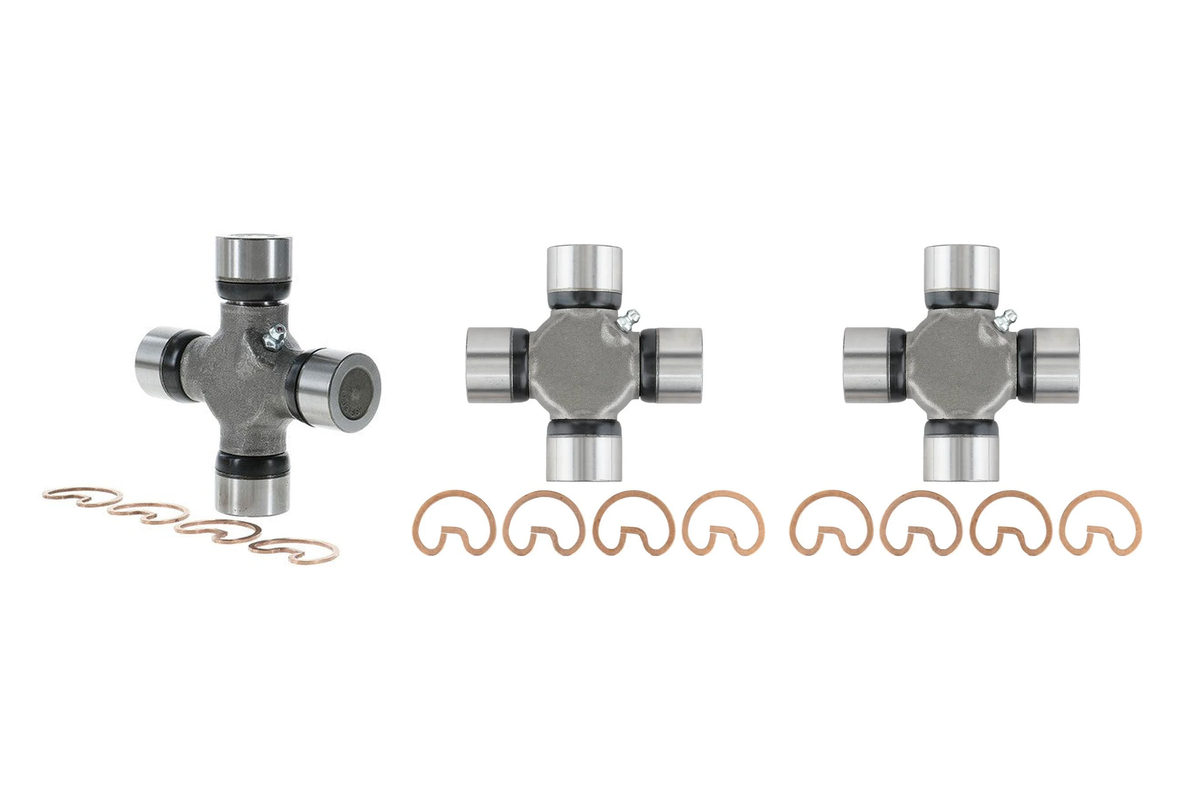

Includes: 1 x Spicer 5-160X, 2 x Spicer 5-188X.

Measure before ordering:
5-160X: 1.188-inch (30.175 mm) bearing caps on both axes; 4.188-inch (106.4 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
5-188X: 1.375-inch (34.9 mm) bearing caps on both axes; 4.188-inch (106.4 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
