Spicer AAM 1485 Rear U-Joint Kit - 2008 Dodge Ram 3500 RWD - Regular Cab, Diesel, Aam shaft, 2-pc rear shaft, 1485 shaft

For the rear driveshaft on 2008 Dodge Ram 3500 RWD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (2008):
Fuel: DIESEL; Body/cab: Standard Cab Pickup; Drive: RWD.
- Rear Driveshaft at Rear Axle: 1 x Spicer 5-3206X - 1.375in Bearing Cap Diameter; Non-Greasable; with AAM 1485 Series Driveshaft; with 2 Piece Rear Driveshaft; with 4.178in Outside Snap Ring Dimension.
- Rear Driveshaft at Support Bearing: 1 x Spicer 5-3206X - 1.375in Bearing Cap Diameter; Non-Greasable; with AAM 1485 Series Driveshaft; with 2 Piece Rear Driveshaft; with 4.178in Outside Snap Ring Dimension.
- Rear Driveshaft at Transmission: 1 x Spicer 5-3206X - 1.375in Bearing Cap Diameter; Non-Greasable; with AAM 1485 Series Driveshaft; with 2 Piece Rear Driveshaft; with 4.178in Outside Snap Ring Dimension.

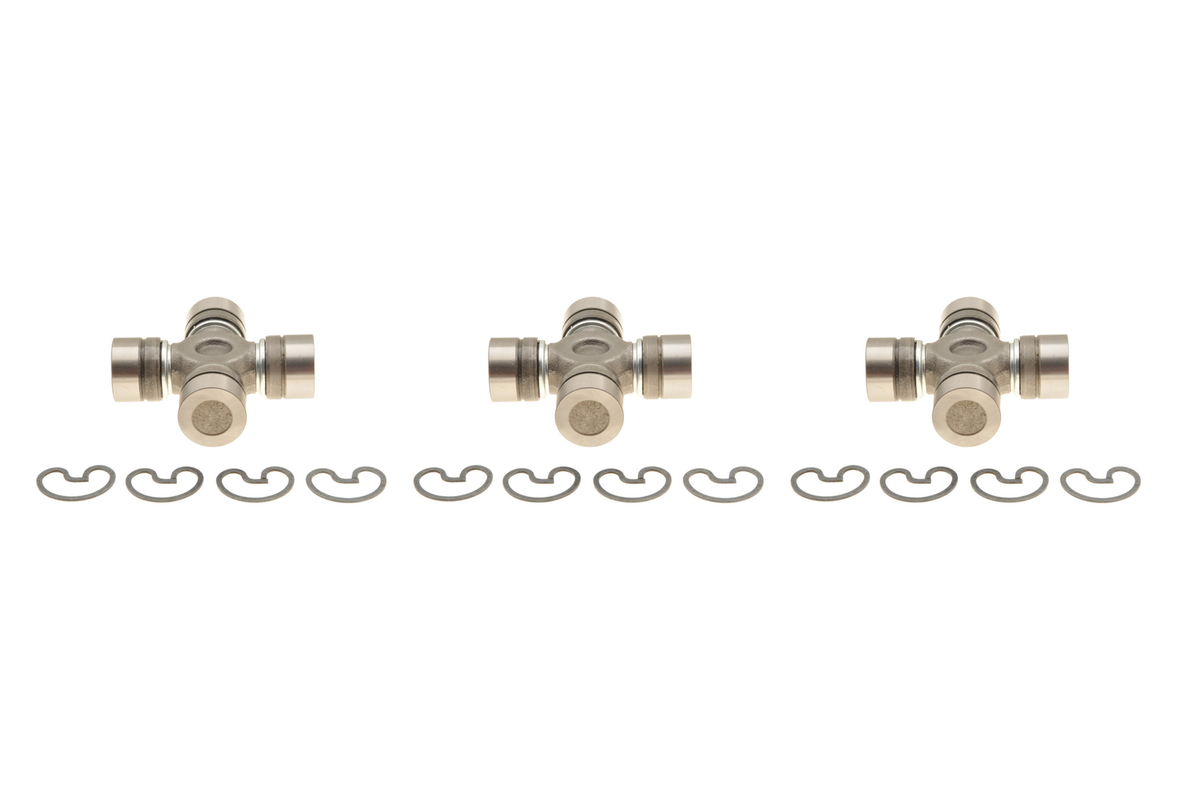

Includes: 3 x Spicer 5-3206X.

Measure before ordering:
5-3206X: 1.375-inch (34.9 mm) bearing caps on both axes; 4.178-inch (106.1 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Non-greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces. AAM joint geometry is not interchangeable with similarly numbered Spicer series.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
