Spicer 1480 Rear U-Joint Kit - 2001–2002 Chevy Silverado 3500 4WD - Spicer shaft, 1-piece driveshaft, 1480 shaft

For the rear driveshaft on 2001–2002 Chevy Silverado 3500 4WD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (2001, 2002):
Drive: 4WD.
- Rear Driveshaft at Rear Axle: 1 x Spicer 5-188X - Greaseable; with 4.188in Outside Snap Ring Dimension; 1 Piece Driveshaft; 1.375in Bearing Cap Diameter; with Spicer 1480 Series Driveshaft.
- Rear Driveshaft at Transmission: 1 x Spicer 5-188X - Greaseable; with 4.188in Outside Snap Ring Dimension; 1 Piece Driveshaft; 1.375in Bearing Cap Diameter; with Spicer 1480 Series Driveshaft.

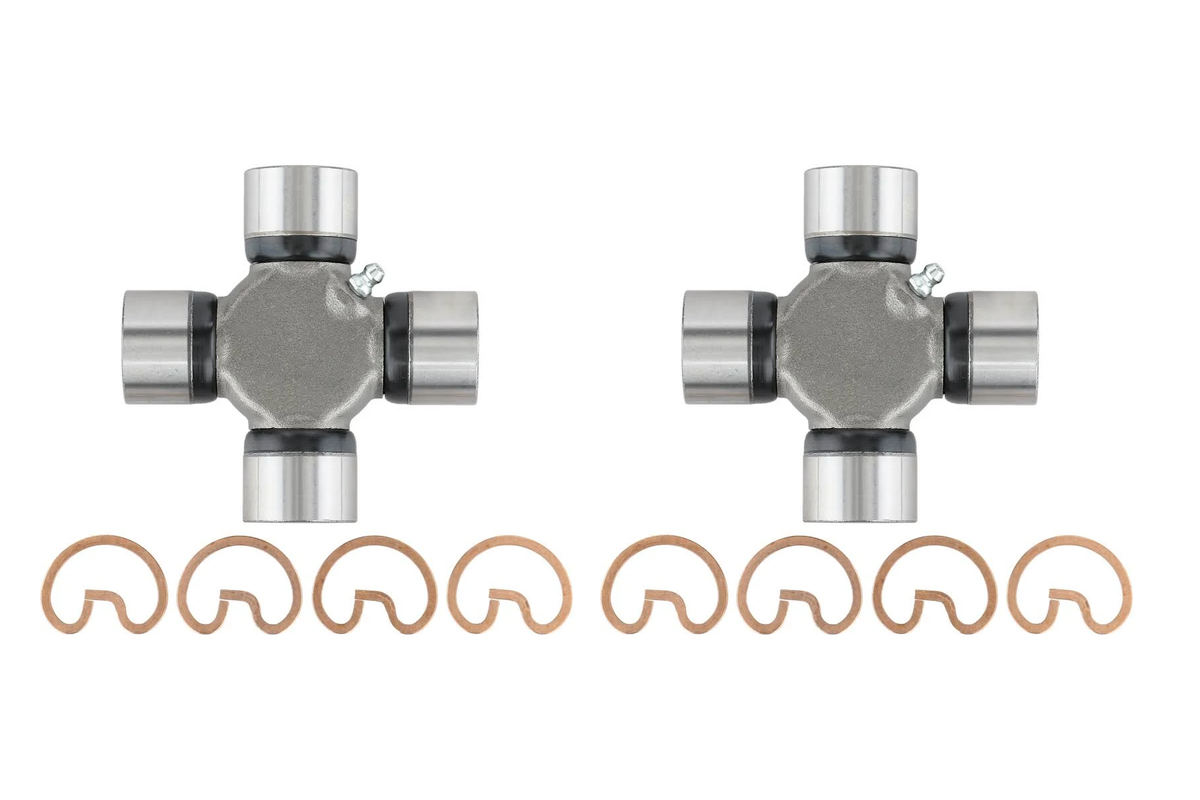

Includes: 2 x Spicer 5-188X.

Measure before ordering:
5-188X: 1.375-inch (34.9 mm) bearing caps on both axes; 4.188-inch (106.4 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
