Spicer 1350 Rear Carrier & U-Joint Kit - 2003 Chevy Silverado 2500 HD 2WD - 6.0L, 8-cyl, Extended Cab, Auto, 5-speed, 157.5-in WB, No HD 2-in Body Raise, 1350 shaft

For the rear driveshaft on 2003 Chevy Silverado 2500 HD 2WD.
This is a limited listed-parts bundle. Match the complete vehicle and shaft conditions below before ordering.
Required configuration (2003):
Engine (L): 6.0; Cylinders: 8; Engine layout: V; C C: 5967; C I D: 364; Engine Bore Inches: 4.00; Engine Bore Metric: 101.6; Engine Stroke Inches: 3.62; Engine Stroke Metric: 92.0; Body/cab: Extended Cab Pickup; Drive: RWD; Transmission speeds: 5; Transmission: Automatic; Wheelbase (in): 157.5; Wheelbase (cm): 400.1.
- Center support bearing: 1 x Spicer 212028-1X - Replaces OE Part Number(s) 88934865.
- Rear Driveshaft at Rear Axle: 1 x Spicer 5-178X - Greaseable; with 1350 Series Driveline; 1.188in Bearing Cap Diameter; Except Heavy Duty 2in Body Raise; with 3.625in Outside Snap Ring Dimension.
- Rear Driveshaft at Support Bearing: 1 x Spicer 5-178X - Greaseable; with 1350 Series Driveline; 1.188in Bearing Cap Diameter; Except Heavy Duty 2in Body Raise; with 3.625in Outside Snap Ring Dimension.
- Rear Driveshaft at Transmission: 1 x Spicer 5-178X - Greaseable; with 1350 Series Driveline; 1.188in Bearing Cap Diameter; Except Heavy Duty 2in Body Raise; with 3.625in Outside Snap Ring Dimension.

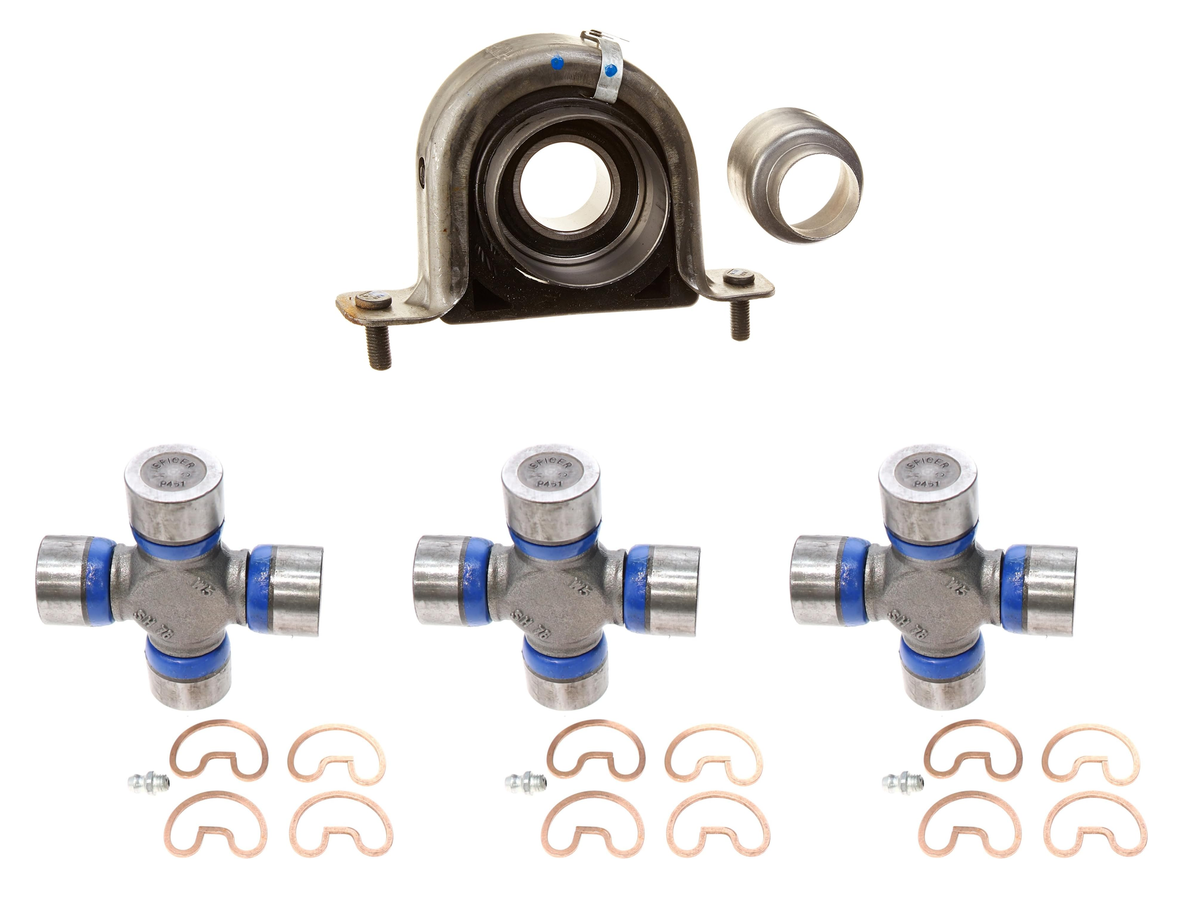

Includes: 1 x Spicer 212028-1X, 3 x Spicer 5-178X.

Measure before ordering:
212028-1X: 1.574-inch bearing bore/inside diameter. Mounting centers 6.620 inches; bracket width (front-to-back) 1.500 inches; bearing centerline to mounting surface 2.250 inches. M10 × 1.5 mounting studs, shown in official Style 17 diagram. Current page lists 0.394-inch bolt-hole field and M10 × 1.5 stud thread.
5-178X: 1.188-inch (30.175 mm) bearing caps on both axes; 3.625-inch (92.1 mm) overall cap-to-cap width on both axes. Outside snap rings (OSR). Greaseable.
Use a caliper to measure every cap and BOTH joint axes. Compress the caps and measure the overall width across opposing cap end faces.
For the bearing, check the shaft bearing seat/bore and the actual mounting arrangement. Mounting centers are not overall bracket length; center height is measured to the mounting surface. Older catalogs show 1.520-inch bracket width; current Dana specification is 1.500 inches. Check clearance where critical.

Only the listed parts are included. This is not a complete driveshaft or CV rebuild kit; unlisted centering parts, yokes and separate installation hardware are not included. Verify modified shafts individually.
