Spicer Front Outer Axle Stub Shaft, U-Joint & Seal Master Overhaul Kit for 1998-2004 Ford Super Duty (Dana 60, Both Sides)

Eliminate violent front-end wheel vibrations, restore your automatic four-wheel-drive engagement, and completely rebuild your outer wheel ends with this genuine Spicer Dana 60 Master Overhaul Kit. Specifically packaged as an all-in-one, dual-side restoration solution for 1998–2004 Ford F-250 and F-350 Super Duty 4x4 trucks and 2000–2005 Ford Excursion models, this premium master package includes all the primary rotating axle hardware and multi-lip vacuum seals required to refresh both the driver and passenger sides of your front axle at the same time.

On leaf-spring Ford Super Duty platforms, the front Dana 60 solid axle endures incredible structural and rotational strain under the immense weight of the 7.3L or 6.0L PowerStroke Turbo Diesel engines. Over decades of heavy commercial towing, snowplowing, or trail riding with oversized tires, the outer steel stub shafts (yoke shafts) naturally fatigue. Common failure points include twisted outer splines, deep rust pitting on the hub-seal journal, or ovaled-out universal joint ears caused by a binding front U-joint. Left unchecked, a dry or failing U-joint causes severe steering wheel feedback, tire scrubbing, and can eventually snap completely—destroying your outer wheel end assembly. Simultaneously, the massive primary knuckle vacuum seals integrated into this platform dry-rot or tear over time. When these blow out, your Electronic Shift-on-the-Fly (ESOF) system loses vacuum pressure, leaving your dashboard-controlled automatic 4WD completely inoperable.

This original equipment manufacturer (OEM) master overhaul package eliminates the hassle of tracking down individual components by combining two rugged 30-spline outer stub shafts with premium Spicer heavy-duty universal joints. These universal joints feature cold-forged steel crosses and advanced multi-lip synthetic rubber seals to permanently lock out trail mud, water, and sand. The kit also includes the factory-correct primary vacuum knuckle seals and updated outer axle tube dust seals to re-establish an absolute, airtight fluid and debris barrier. Sourcing a genuine Spicer master bundle ensures exact original equipment tolerances, uncompromised metallurgy, and matching factory blueprints for a seamless, long-lasting repair.

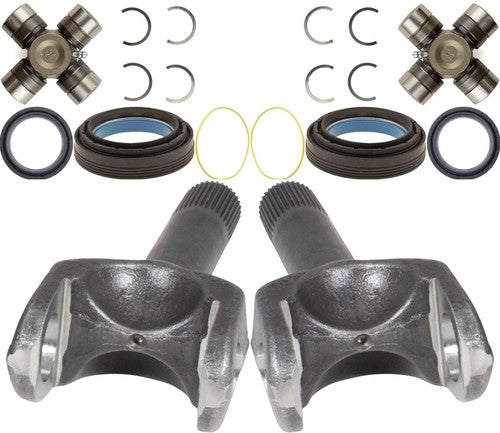

Kit Contents (Services Both Left & Right Front Steering Knuckle Wheel Ends):

• (2) Genuine Spicer Forged Steel Front Outer Axle Stub Shafts (30 Spline Outer)

• (2) Heavy-Duty Front Axle Shaft Universal Joints with Premium Needle Bearings

• (2) Premium Multi-Lip Outer Axle Stub Shaft Vacuum Knuckle Seals (Part # 50491 / F81Z-3254-CB)

• (2) Updated Multi-Lip Outer Axle Tube Dust Seals (Part # 50381 / F81Z-1S175-HCA)

• Full Set of Internal/External Retaining Snap Rings and Thrust Washers

Kit Highlights:

• Complete Dual-Side Master Set: Supplies exactly enough factory-correct shafts, heavy-duty U-joints, and specialized seals to fully overhaul both the left and right front outer wheel ends simultaneously.

• Restores ESOF 4x4 Function: Provides a complete set of fresh, original equipment vacuum seals to eliminate vacuum drop-off, ensuring your automatic locking hubs engage instantly when you switch to 4WD.

• Heavy-Duty Forged Steel Shafts: Precision-machined and induction-hardened by the vehicle's original axle supplier to guarantee strict structural compliance and perfect alignment with your factory inner axle shafts and hub units.

• Dual-Layer Contamination Defense: Blocks intrusive mud, debris, highway salt, and water from fouling your inner spindle needle bearings or migrating down the axle tubes.

Vehicle & Axle Fitment:

• Axle Profile: Solid Monobeam / Leaf-Spring Front Dana 60 Axles equipped with open knuckles and vacuum-operated or manual locking hubs. Does not fit lighter-duty Dana 50 front axles or later 2005+ coil-spring Dana Super 60 axle configurations.

• Ford F-250 Super Duty: 1998, 1999, 2000, 2001, 2002, 2003, and 2004 4x4 heavy-duty models factory-equipped with the optional Dana 60 front axle.

• Ford F-350 Super Duty: All 1998–2004 Single-Rear-Wheel (SRW) and Dual-Rear-Wheel (DRW) dually 4x4 models.

• Ford Excursion: 2000, 2001, 2002, 2003, 2004, and 2005 4x4 SUV models equipped with the Dana 60 front platform.

• Position: Front Outer Axle Wheel End — Left (Driver) and Right (Passenger) Sides (1 Kit Overhauls Entire Front Axle)
